MD901F (Android)

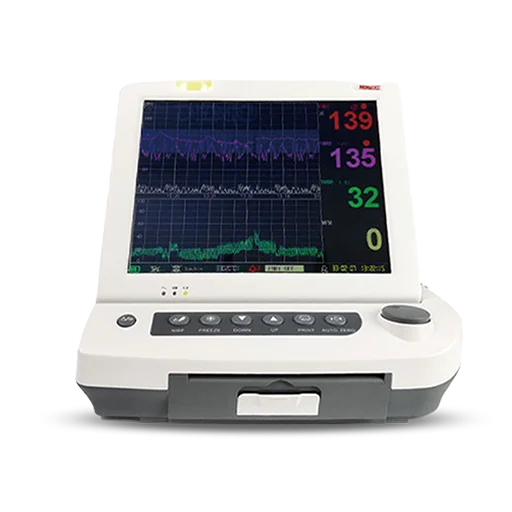

MD901F-Android | Advanced Fetal Monitor 12.1-inch Touchscreen with FHR, TOCO, FM, and Maternal Monitoring Options

The Maternal and Fetal Monitor MD901F-Android is an advanced CTG monitoring system designed for maternity suites, delivery rooms, and obstetrics departments. It features a 12.1-inch foldable touchscreen, wireless probe support, networking capability, and optional maternal monitoring parameters including SpO₂, NIBP, ECG, and TEMP.

The system provides real-time monitoring of fetal heart rate (FHR), uterine contractions (TOCO), and fetal movement (FM) with advanced alarm management, trace analysis, large data storage, PDF export, and central station connectivity.

Email this page

CE Mark

FDA Approved

Made of ABS

All Meditech customers and healthcare professionals can submit equipment service tickets through the Customer Service Portal.

To receive two additional months of extended warranty, please register your product here.

To browse all support resources and contact information, please visit the Support Center.

Coming soon.

Product Features

Discover the advanced capabilities that set our products apart

12.1-inch color touchscreen
- Tiltable design up to 75° for easy viewing and operation.
Real-time fetal monitoring
- Fetal heart rate FHR.
- Uterine contractions TOCO.
- Fetal movement FM.
Advanced wireless monitoring
- Supports wireless monitoring for FHR / TOCO / FM.
Optional maternal monitoring functions
- Oxygen saturation SpO₂.
- Non-invasive blood pressure NIBP.
- Maternal electrocardiogram ECG.
- Temperature TEMP.
Advanced fetal status assessment
- Fischer criteria.
- Krebs criteria.
- ACOG criteria.
- Non-stress test NST.
- Oxytocin challenge test OCT.
- Contraction stress test CST.
- NS-CTS.
Built-in thermal recorder
- Supports use of Z-Fold printing paper.
PDF report export
- Ability to export reports directly via USB or Wi-Fi.
Large data storage capacity
- Stores monitoring data for up to 4,000 hours.
Central monitoring station
- Supports monitoring of multiple beds simultaneously via Central Monitoring Station.
- Ability to integrate with the hospital network.
Multilingual interface
- Chinese, English, Russian, Spanish, Turkish, Polish, French and Portuguese.
Automatic alarm system
- Fetal tachycardia alarm.
- Fetal bradycardia alarm.
- Alarms for exceeding the upper or lower limits of FHR.
- Sensor disconnection alarm.
- Low battery alarm.
- Print paper out alarm.
- Network disconnection alarm.

Product Specifications

Detailed technical specifications and performance parameters

Technical Specifications for MD901F-Android Device

Screen and Display Specifications

Parameter	Specifications
Screen Size	Color screen 12.1 inches
Screen Type	Tiltable screen up to 75°
Touchscreen	Yes
Display Information	Bed number, gestational weeks, age, paper speed, date, time, volume level, alarm status, probe status, recorder status
Waveform Display	FHR waveform, TOCO waveform, and fetal movement FM markers

Fetal Heart Rate (FHR) Monitoring

Parameter	Specifications
Measurement Method	Ultrasound Doppler
Ultrasound Frequency	1 MHz
Operating Frequency	1 MHz ±10%
FHR Range	50–240 bpm
Display Accuracy	1 bpm
Measurement Accuracy	±2 bpm
Acoustic Pressure	P <1 MPa
Acoustic Power Density at Output	Iob <20 mW/cm²
Ispta	<100 mW/cm²
Isata	<10 mW/cm²

Uterine Activity (TOCO) Monitoring

Parameter	Specifications
Measurement Range	0–100%
Accuracy	1%
Nonlinear Error	≤±8%
Zero Adjustment	Manual
Display	Uterine contraction waveform

Fetal Movement (FM)

Parameter	Specifications
Function	Manual recording of fetal movement
Display	Movement marker appears on the FHR waveform area

SpO₂ Monitoring – Optional

Parameter	Specifications
Measurement Range	0–100%
Display Accuracy	1%
Measurement Accuracy for Adults/Pediatrics	±2% (70–100%, no motion)
Measurement Accuracy for Neonates	±3% (70–100%, no motion)
Measurement Accuracy at 0–69%	Unspecified
Alarm Range	0–100%
Update Rate	1 second

Pulse Rate Monitoring – Optional

Parameter	Specifications
Measurement Range	25–250 bpm
Display Accuracy	1 bpm
Measurement Accuracy	±3 bpm
Alarm Range	25–250 bpm
Update Rate	1 second

ECG Monitoring – Optional

Parameter	Specifications
Lead Configuration	3-wire / 5-wire
Lead Selection	I, II, III, aVR, aVL, aVF, V
Heart Rate Range	15–300 bpm
Waveform Display

Two channels Measurement accuracy ±2 bpm or ±2% (whichever is greater) ST detection range −2.0 to +2.0 mV Arrhythmia analysis 13 types Alarm range 15–300 bpm

Non-Invasive Blood Pressure (NIBP) Monitoring – Optional

Parameter	Specifications
Measurement method	Oscillometric method Oscillometric
Measurement modes	Manual / Automatic / Continuous
Measurement range	25–260 mmHg
Automatic measurement intervals	5, 10, 15, 30, 45, 60, 90 minutes
Accuracy	1 mmHg
Overpressure protection	300 mmHg
Alarm range	25–260 mmHg

Printer Specifications

Parameter	Specifications
Printer type	Thermal recorder
Paper type	Double Z-Fold paper
Paper width	112 mm
Actual printing width	104 mm
Paper speeds	1, 2, 3 cm/min
Recording accuracy	X: ±5%, Y: ±1%
Printing content	Hospital name, bed number, patient name, gestational weeks, patient ID, paper speed, date, time, FHR waveform, TOCO waveform, fetal movement marks

Safety and Electrical Specifications

Parameter	Specifications
Safety classification	Class I
Applied part type	Type B
Electric shock protection	Equipped with electric shock protection
Operating voltage	AC 100–240V
Frequency	50/60 Hz
Power consumption	<60 VA
Fuse	T1.6AL 250V

Physical Characteristics

Parameter	Specifications
Dimensions	320 × 260 × 80 mm
Weight	Approximately 3 kg

Networking and Data Management

Function	Specifications
Central station server	Yes
Multi-bed monitoring	Supported
Data storage	Up to 4000 hours
PDF export	Supported
USB export	Supported
Wi-Fi data transfer	Supported
PC software	Included

Comparison of MD901F and MD901F-Android

Parameter	MD901F	MD901F-Android
Type	12.1 inch	12.1 inch
Standard configuration	FHR, TOCO, FM	FHR, TOCO, FM, touchscreen, networking
Options	FHR2, SpO₂ + NIBP, Fetus Waker, Wireless FHR/TOCO/FM, touchscreen, networking, NIBP + SpO₂ + ECG + TEMP	SpO₂ + NIBP, Fetus Waker, Wireless FHR/TOCO/FM, NIBP + SpO₂ + ECG + TEMP
Alarms	Tachycardia, bradycardia, paper out, low battery, network interruption, probe detachment, FHR upper/lower limits	Tachycardia, bradycardia, paper out, low battery, network disconnection, probe disconnection, upper/lower FHR limits
Printing	Thermal printer	Thermal printer, direct printing via Wi-Fi to PC, PC software support
Data export	Central station	Central station, direct PDF export in A4/B5 size
Recording systems	Fischer, Krebs, ACOG, NST	Fischer, Krebs, ACOG, NST, OCT, CST, NS-CTS
Storage	30 hours	Up to 4000 hours, PDF export via USB, PDF transfer via Wi-Fi to PC
STV	Yes	Yes
Clinic events list	Yes	Yes
Text input via local keyboard	No	Yes
Language support	English and local language	Chinese, English, Russian, Spanish, Turkish, Polish, French, Portuguese
Probe	9 crystals, 1 MHz	9 crystals, 1 MHz
FHR range	50–210 bpm	30–240 / 30–250 / 50–210 bpm
TOCO range	0–100 units	0–100 units
Central station server	No	Yes, functions as central station server and connects to other bedside monitors
IP address check	Requires special software	Direct display

Key differences

Feature	MD901F-Android
Operating system	Built-in Android operating system providing greater flexibility
Networking	Direct network support and central station server function
Data storage	Significantly larger storage capacity
Data export	Direct PDF export and file transfer via Wi-Fi
Language support	Support for a wide range of international languages
Keyboard	Support for text input using a local keyboard
Printing	Support for printing via Wi-Fi and integration with PC software
Clinical workflow	Better integration with hospital systems and support for monitoring multiple beds

Related Accessories

Compatible accessories to extend functionality

Standard Configuration

Accessory	Quantity
Ultrasound probe (FHR probe)	1 piece
TOCO probe	1 piece
Remote control key	1 piece
Abdominal belt	1 piece
Z-Fold thermal paper	1 piece
Grounding cable	1 piece
Fuse	2 pieces
Cleaning cloth	1 piece

Optional Accessories

Accessory
ECG cable (3 leads)
Alligator-type metal ECG clips
Adult SpO₂ cable
Neonatal SpO₂ cable
Adult finger clip SpO₂ cable
Pediatric finger clip SpO₂ cable
Y-type multi-site SpO₂ cable
Soft tip SpO₂ probe
External SpO₂ cable
Infant NIBP cuff (8–14 cm, 5 pieces/bag)
Pediatric NIBP cuff (13–20 cm, 5 pieces/bag)
Small adult NIBP cuff (18–26 cm, 5 pieces/bag)
Adult NIBP cuff (26–35 cm, 5 pieces/bag)
Adult long NIBP cuff (29–38 cm, 5 pieces/bag)
Adult large NIBP cuff (32–42 cm, 5 pieces/bag)
Adult large and long NIBP cuff (35–44 cm, 5 pieces/bag)
Thigh NIBP cuff (42–50 cm)
NIBP tube 150 cm long
Thermal paper roll
Thermal printer
Wall mount for patient monitor (3 models available)
Cart for patient monitor (5 models available)

Expansion for Maternal and Fetal Monitoring

MD901F-Android supports maternal parameter monitoring options, including ECG, SpO₂, and NIBP, enabling system expansion from a fetal monitor to a comprehensive maternal and fetal monitoring solution.

Product Overview

Core specifications at a glance

SKU MDT07-D00008

Gross Weight 6.5kg

Package Size 42×40×26cm

QTY/BOX 1pcs
