    Dolphi® pro

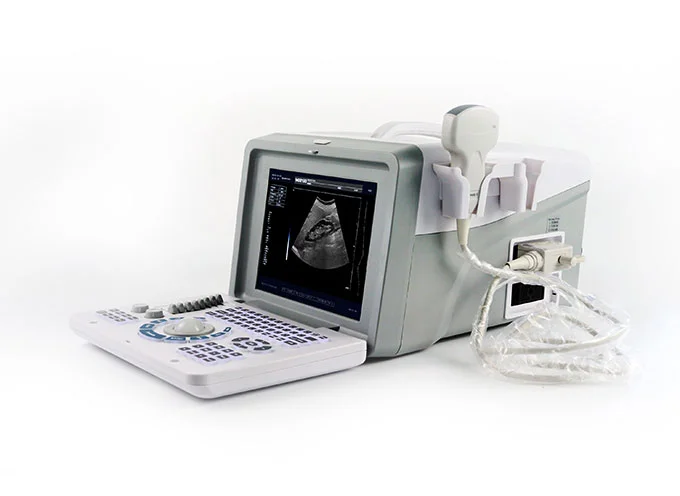

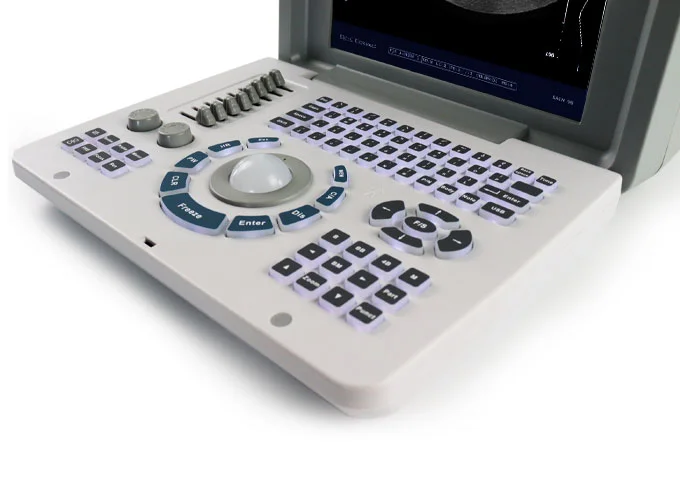

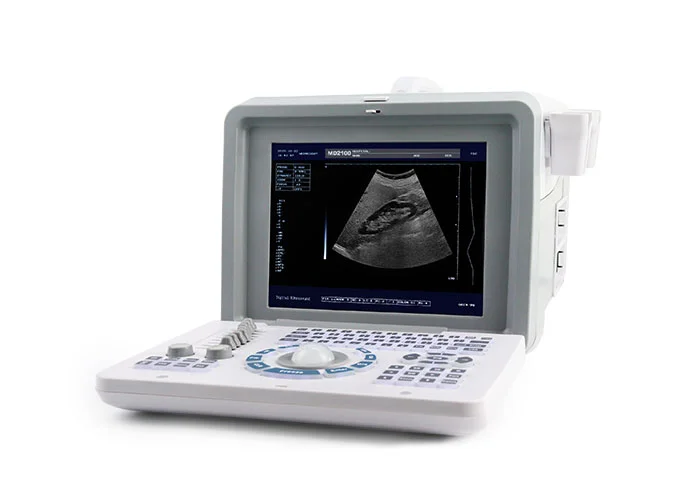

    Portable B/W ultrasound scanner (sonar), with a 10-inch SVGA screen, multi-mode imaging and advanced measurement functions.

    The ultrasound device is a high-performance diagnostic imaging system designed for clinical applications including general imaging, obstetrics, and guided procedures. Equipped with a 10-inch high-resolution SVGA display, advanced image processing technology, multiple imaging modes, and comprehensive measurement tools, it delivers clear and detailed ultrasound images for accurate diagnosis.

    Email this page
    CE CE Mark
    ABS Made of ABS
    LATEX Natural Latex Free

    Product Features

    Discover the advanced capabilities that set our products apart

    Display and Imaging

    • 10-inch high-resolution color SVGA display.
    • 256-level grayscale imaging for clear and detailed images.
    • Multiple imaging modes: B, B/B, 4B, B+M and M.
    • Adjustable dynamic range: 64–96 dB.
    • Multiple electronic focus zones.
    • Advanced image processing including dynamic filtering, edge enhancement, image and line fusion, linear interpolation, 8 γ levels and 16 color processing modes.

    Frequency and Probe Support

    • Multiple operating frequencies: 2.5, 3.0, 3.5, 4.0, 6.5 and 7.0 MHz.
    • Supports convex probes and high-frequency linear probes.
    • 80-element array probe.
    • Scan depth: ≥180 mm.

    Measurements and Calculations

    • Distance, circumference and area measurement.
    • Heart rate calculation.
    • Obstetric measurements, including BPD, GS, CRL, FL, AC.
    • Gestational age and estimated delivery date calculation.

    Image Storage and Review

    • Cine Loop memory up to 256 consecutive images.
    • Permanent storage up to 128 images.
    • Image review and playback.
    • Supports multiple formats for display and output.

    Biopsy Guidance and Image Adjustment

    • Biopsy guide line in B mode.
    • Overall gain and near-field and far-field gain adjustment.
    • 2× digital zoom.
    • Horizontal or vertical image flip, and black-and-white inversion.

    Connectivity and Output

    • Two SVGA outputs for connecting external color monitors.
    • PAL output for video capture and integration with external systems.
    • Optional data transfer via USB.

    Performance

    • Lateral resolution: ≤2 mm up to 80 mm depth, and **≤3 mm** at 80–130 mm depth.
    • Axial resolution: ≤1 mm up to 80 mm depth, and **≤2 mm** at 80–130 mm depth.
    • Dead zone: ≤3 mm.
    • Geometric accuracy: ≤5%.

    Power and Operation

    • Power source: 220V ±22V, 50Hz.
    • Power consumption: ≤300 VA.
    • Continuous operation: ≥8 hours.

    Applications

    • General ultrasound examinations.
    • Obstetric imaging.
    • Clinical diagnosis.
    • Ultrasound-guided procedures.
    A portable and versatile ultrasound scanner combining advanced imaging, comprehensive measurement functions, and reliable performance to support efficient clinical diagnosis.

    Product Specifications

    Detailed technical specifications and performance parameters

    Parameter Specifications
    Display 10-inch SVGA high-definition display
    Grayscale 256 levels
    Display modes B, B/B, 4B, B+M, M
    Zoom ×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0
    Dynamic range 64–96 dB adjustable
    Focus 4-level dynamic electronic focus
    Pre-processing Adjustable Iris, dynamic Change mark, dynamic Filter, edge enhancement
    Image processing 8 γ adjustments, 16 Color Processes, Line correlation, Image correlation, linear interpolation
    Conversion frequency 2.5 / 3.0 / 3.5 / 4.0 / 6.5 / 7 MHz
    Calculation functions Distance, Circumference, Area, Heart rate, Gestational age (BPD, GS, CRL, FL, AC), Estimated date of Birth
    Patient InformationName, Medical History No., Gender, Age, 16 Body Marks, Probe Marks, Full Screen Characters, Real-Time Clock
    Guide Hole Line Hole Display in B Mode
    Gain Control Total Gain, Near Field, Far Field Adjustment
    Image Polarity Left/Right, Black/White, Up/Down Reverse
    Gain Zoom 2× Magnification
    Film Memory 256 Images Real-Time Storage
    Image Memory 128 Permanent Image Storage
    Image Review Individual Image Viewing and Checking
    Output Interface 2× SVGA Video Output, 2× PAL Video Output, Optional USB Port
    Probe Type 80-Element R60 Probe
    Probe Frequency 3.5 MHz
    Scanning Depth ≥180 mm
    Lateral Accuracy ≤2 mm (Depth ≤80 mm), ≤3 mm (80–130 mm)
    Axial Accuracy ≤1 mm (Depth ≤80 mm), ≤2 mm (80–130 mm)
    Dead Zone ≤3 mm
    Geometric Accuracy Lateral ≤5%, Axial ≤5%
    Monitor 10-inch SVGA High-Definition Monitor (PAL optional)
    Image Loop Memory 256 Frames
    Power Source AC 220V ±22V, 50Hz
    Input Power ≤300 VA
    Continuous Working Time ≥8 hours
    Total Weight 10 kg
    Net Weight 7 kg
    Package Dimensions 480 × 380 × 410 mm

    Related Accessories

    Compatible accessories to extend functionality

    Standard Accessories

    Item Quantity
    Multi-frequency convex probe 1 piece
    Power cable 1 piece
    Cleaning cloth 1 piece

    Optional Accessories

    Item
    High-frequency linear array probe 7.5 MHz
    Intracavity (transvaginal) probe 6.5 MHz
    Transrectal probe 7.5 MHz
    Small convex probe 3.5 MHz
    Black and white laser printer B/W
    Foot pedal
    Battery
    Mobile cart
    Ultrasound workstation

    Product Overview

    Core specifications at a glance

    SKU MDT17-D00002
    Gross Weight 10.5kg
    Package Size 41×50×44cm
    QTY/BOX 1pcs
