    B-Rec32

    32-Channel EEG Brain Electrical Mapping System | Brain Activity Map Recording and Analysis

    The 32-channel EEG brain mapping system is an advanced digital electroencephalography device designed for comprehensive brain activity monitoring and neurological diagnosis. It acquires EEG signals via electrodes, and performs integrated amplification, analog-to-digital conversion, automatic computer analysis, and FFT processing to generate brain electrical activity maps (BEAM) with visual representation of colored power distribution.

    With 32-channel EEG recording capability, high signal quality, low-noise performance, and professional analysis software, the system is suitable for hospitals, neurology departments, and diagnostic centers to evaluate neurological disorders including epilepsy, intracranial infections, cerebrovascular diseases, and brain tumors.

    Email this page
    CE CE Mark
    LATEX Natural Latex Free
    ABS Made of ABS

    Product Features

    Discover the advanced capabilities that set our products apart

    Advanced EEG Signal Acquisition

    • 32-channel EEG recording system.
    • High-quality EEG signal acquisition via electrode system.
    • Integrated amplification and digital signal conversion.
    • FFT analysis and BEAM brain electrical activity mapping.
    • Color display of brain electrical power distribution.

    Advanced Neuro Analysis

    • Automatic EEG signal analysis.
    • Brain electrical activity map display.
    • Suitable for assessment and diagnosis of neurological conditions, including:
      • Epilepsy.
      • Intracranial infections.
      • Cerebrovascular diseases.
      • Brain tumors.

    High-Performance Signal Processing

    • Low noise level: ≤5 μV.
    • High common mode rejection ratio CMRR ≥90 dB.
    • Strong interference suppression at 50 Hz ≥30 dB.
    • High input impedance: >10 MΩ.
    • Stable signal acquisition with polarization voltage protection.

    Flexible Clinical Applications

    • Real-time EEG signal display.
    • Display analysis results on screen or print them.
    • Computer-based EEG analysis software.
    • Optional modules for video and SpO₂ monitoring.

    Complete System Package

    Includes:

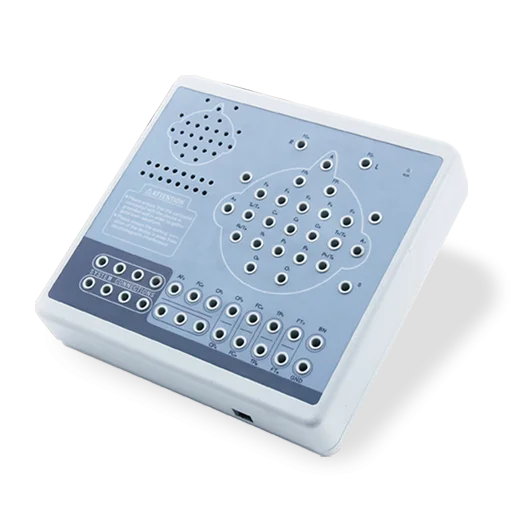

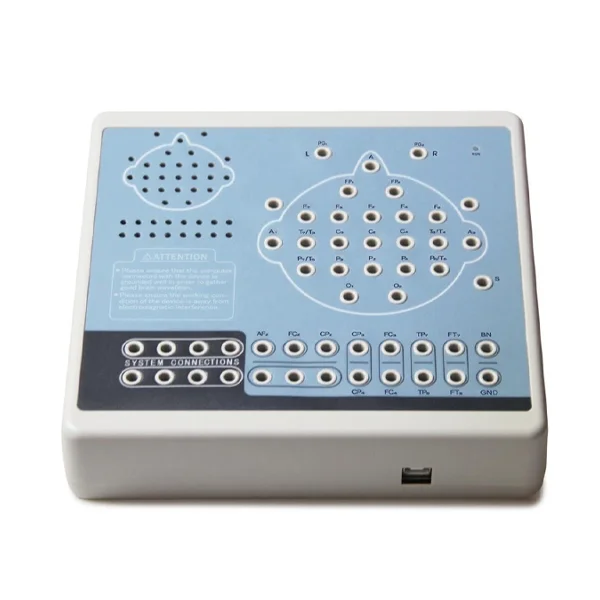

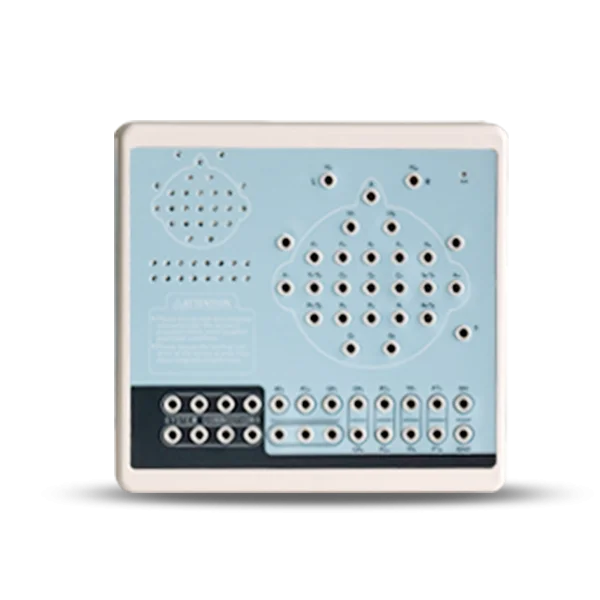

    • EEG recording unit.
    • EEG electrodes.
    • EEG cable.
    • EEG electrode cap.
    • USB data cable.
    • Analysis software on CD.

    Product Specifications

    Detailed technical specifications and performance parameters

    Specification Details
    Device Type Digital EEG System EEG
    Number of EEG Channels 32 channels
    Application Recording and monitoring of EEG signals and analysis of the brain's electrical activity
    Signal Processing Signal amplification, analog-to-digital conversion A/D, computer analysis, and FFT analysis
    Display Method Brain Electrical Activity Mapping BEAM with color display of power distribution
    Scan Speed 30 mm/s ±5%
    Noise Level ≤5 μV
    Calibration Voltage 50 μV ±5%
    Common Mode Rejection Ratio (CMRR) ≥90 dB
    Input Impedance >10 MΩ
    50 Hz Interference Suppression ≥30 dB
    Frequency Response 0.8–30 Hz (−3 dB), at 50 μV sine wave AC signal
    Polarization Voltage ±300 mV DC, and deviation ≤±5
    Power Source DC 5V
    Safety Classification Class II, Type BF applied part
    Operating Temperature +5°C to +40°C
    Operating Humidity ≤85% RH
    Operating Atmospheric Pressure 700–1060 hPa
    Storage Temperature −20°C to +55°C
    Storage Humidity ≤90% RH
    Storage Atmospheric Pressure 700–1060 hPa

    Related Accessories

    Compatible accessories to extend functionality

    Accessory Quantity
    EEG cable 1 piece
    EEG electrodes 1 set
    Data cable 1 piece
    EEG electrode cap 1 piece
    Photic stimulation unit 1 piece
    Photic unit power supply 1 piece
    Computer software on CD 1 piece
    User manual 1 piece
    Grounding wire 1 piece

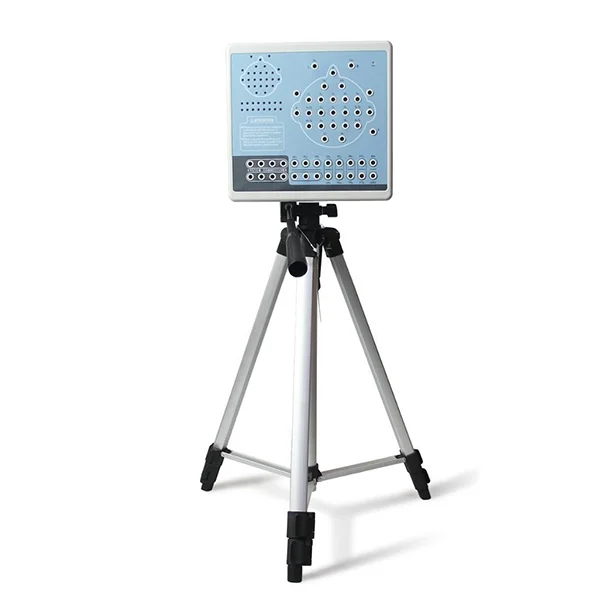

    EEG stand 1 piece
    Aluminum block 1 piece

    Optional Accessories

    Accessory Function
    SpO₂ monitoring unit To monitor oxygen saturation and pulse rate
    Video monitoring unit To record and monitor video simultaneously with EEG examinations

    Product Overview

    Core specifications at a glance

    SKU MDT05-D00003
    Gross Weight 2.6kg
    Package Size 40×29×23.3cm
    QTY/BOX 1pcs
