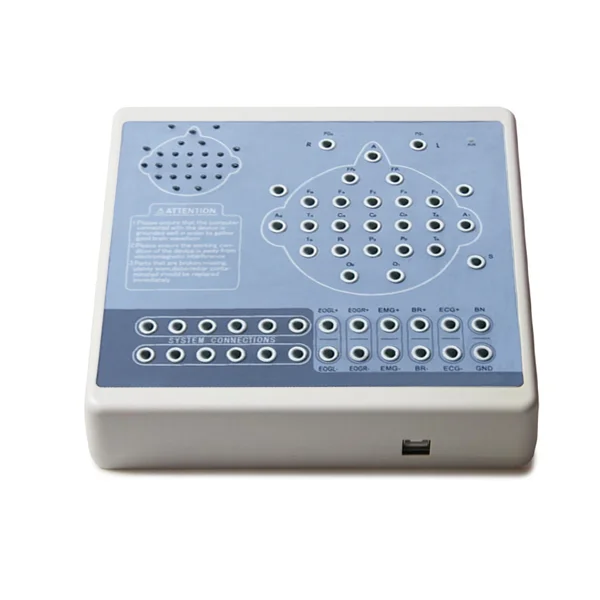

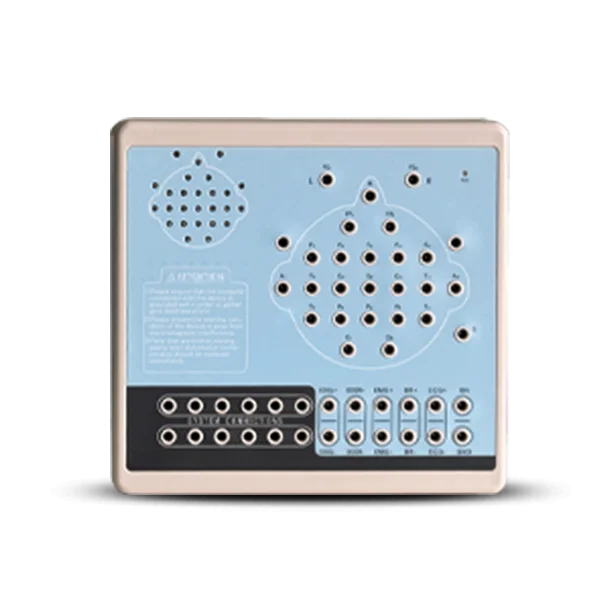

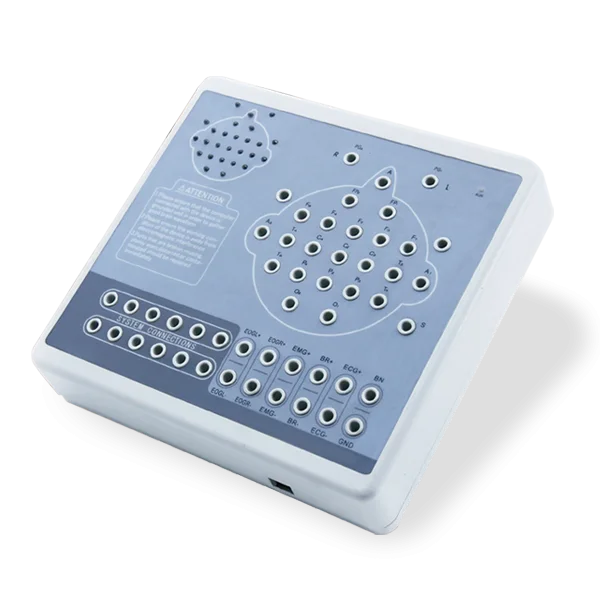

    B-Rec24

    24-Channel EEG Brain Electrical Mapping System | Brain Activity Mapping and Analysis

    The 24-channel EEG Brain Mapping System is an advanced solution for digital electroencephalography, designed to acquire and analyze EEG signals and assess brain activity. The system combines electrode signals with digital amplification and analog-to-digital conversion, along with automatic analysis and FFT processing to generate Brain Electrical Activity Maps (BEAM) and display the electrical power distribution in a clear, colored manner.

    The system is designed for use in hospitals, neurology departments, and diagnostic centers, and supports neurological examinations and assessments related to conditions such as epilepsy, intracranial inflammation, cerebrovascular diseases, and brain tumors. It also provides high-quality signal acquisition with low-noise performance and advanced analysis software, with the possibility of supporting multi-parameter monitoring modules according to the required configuration.
    Email this page
    CE CE Mark
    LATEX Natural Latex Free
    ABS Made of ABS

    Product Features

    Discover the advanced capabilities that set our products apart

    Advanced EEG Signal Acquisition

    • 24-channel EEG recording system.
    • High-quality digital signal acquisition via EEG electrodes.
    • Integrated amplification with analog-to-digital signal conversion A/D.
    • Analysis of the brain's electrical activity using FFT and brain electrical activity mapping BEAM.
    • Color display of the electrical power distribution in the brain.

    Advanced Brain Activity Analysis

    • Automatic processing and analysis of EEG signals.
    • Generation of visual maps of the brain's electrical activity.
    • Suitable for the assessment and follow-up of neurological conditions, including:
      • Epilepsy.
      • Intracranial infections.
      • Cerebrovascular diseases.
      • Conditions associated with brain tumors.

    High Signal Quality and Reliable Performance

    • Low noise level: ≤3 μV.
    • High common mode rejection ratio CMRR ≥90 dB.
    • Stable and clear acquisition of EEG signals.
    • DC polarization voltage tolerance up to ±300 mV DC.

    Practical and Easy-to-Use Design

    • Real-time display and printing of EEG results.
    • Advanced computer-based analysis software.
    • Data communication and transfer via USB.
    • Comprehensive package of EEG accessories.

    Optional Multi-Parameter Monitoring Module

    The system supports an optional module consisting of 5 channels including:

    • One ECG channel.
    • One EMG channel.
    • Two EOG channels.
    • One channel for respiration (RESP) monitoring.

    Product Specifications

    Detailed technical specifications and performance parameters

    Specification Details
    Device Type Digital EEG system EEG
    Number of EEG Channels 24 channels
    Application Recording and monitoring EEG signals and analyzing the electrical activity of the brain
    Signal Processing Integrated amplification, analog-to-digital conversion A/D, and FFT analysis
    Display Method Brain Electrical Activity Mapping BEAM with color display of power distribution
    Scan Speed 60 mm/s ±5%
    Noise Level ≤3 μV
    Common Mode Rejection Ratio (CMRR) ≥90 dB
    Frequency Response 0.5–60 Hz, at 100 μV sine wave AC signal without distortion
    Polarization Voltage ±300 mV DC, and deviation ≤±5
    Power Source DC 5V
    Safety Classification Class II, Type BF applied part
    Operating Temperature +5°C to +40°C
    Operating Humidity ≤85% RH
    Operating Atmospheric Pressure 700–1060 hPa
    Transport Temperature −20°C to +55°C
    Transport Humidity ≤90% RH
    Transport Atmospheric Pressure 700–1060 hPa
    System Components EEG recording unit, USB cable, connection cable, EEG electrodes, EEG electrode cap, and analysis software
    Data Output On-screen display and printing
    Software Functions Analysis and processing of EEG data and display of Brain Electrical Activity Mapping BEAM

    Related Accessories

    Compatible accessories to extend functionality

    Standard Accessories

    Accessory Quantity
    EEG Cable 1 piece
    EEG Electrodes 1 set
    Data Cable 1 piece
    EEG Electrode Cap 1 piece
    Photic Stimulation Unit 1 piece
    Photic Unit Power Supply 1 piece
    Computer Software on CD 1 piece
    User Manual 1 piece
    Grounding Wire 1 piece

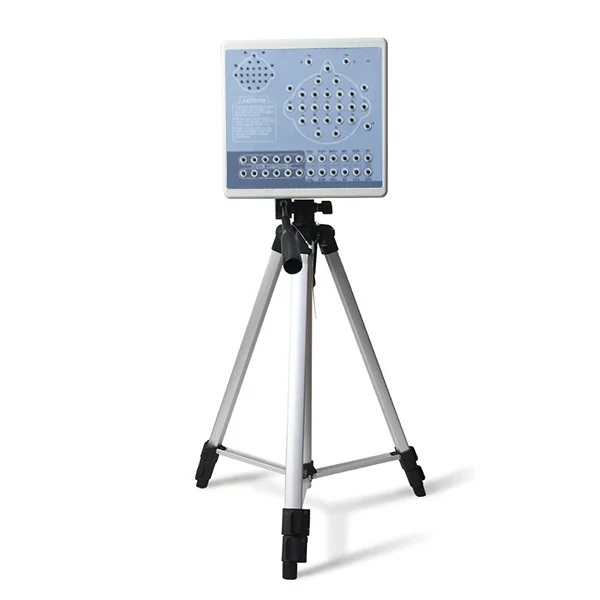

    EEG Stand 1 piece
    Aluminum Block 1 piece

    Optional Accessories

    5-Channel Multi-Parameter Unit:

    Parameter Number of Channels
    ECG 1 channel
    EMG 1 channel
    EOG 2 channels
    Respiration (RESP) 1 channel

    Product Overview

    Core specifications at a glance

    SKU MDT05-D00002
    Gross Weight 2.6kg
    Package Size 40×29×23.3cm
    QTY/BOX 1pcs
