    Defi®5S

    field_product_intro

    Versatile AED designed for both adults and children, providing life-saving support with intuitive guidance and precise shock delivery. Its user-friendly interface ensures confidence in critical situations. Key Features:
    • Child Mode:
      • 50, 50, 75 Joules
    • Adult Mode:
      • 150, 150, 200 Joules
    • User Customization:
      • 2 languages selectable by the user
      • 5 adjustable volume levels (up to 100 dB)
    • Safe & Reliable: Only delivers a shock when necessary, providing safe, effective defibrillation.
    • Trusted Technology: Part of Meditech’s defibrillator series, designed to empower users to save lives efficiently. Tile solution for homes, offices, and healthcare settings.
    Email this page
    CE CE Marked
    ABS Made by ABS
    LATEX Not made with natural rubber latex

    Product Features

    Discover the advanced capabilities that set our products apart

    AED Key Features & Specifications

    Dual Language Support

    • Two selectable languages available for end users.

    Adjustable Volume Control

    • Five adjustable audio levels with maximum output up to 100 dB.

    Adult/Child Mode Selection

    • Dedicated button for quick selection between adult and pediatric patient modes.

    Selectable Energy Levels

    • Child Mode: 50J → 50J → 75J
    • Adult Mode: 150J → 150J → 200J

    Comprehensive Guidance

    • Voice and visual prompts provide step-by-step guidance throughout the rescue process.

    Manual Language Switching

    • Allows users to easily switch language settings during operation.

    Biphasic Energy Delivery

    • Advanced biphasic waveform technology ensures safe and effective defibrillation.

    Safety Interlock System

    • Prevents accidental shock delivery and enhances operational safety.

    Data Transfer Capability

    • Supports transfer of ECG signals and rescue event data to a computer for review and analysis.

    Durable Design

    • IPX55 water and dust resistance.
    • AED can be operated directly from the carrying pocket without opening the case.

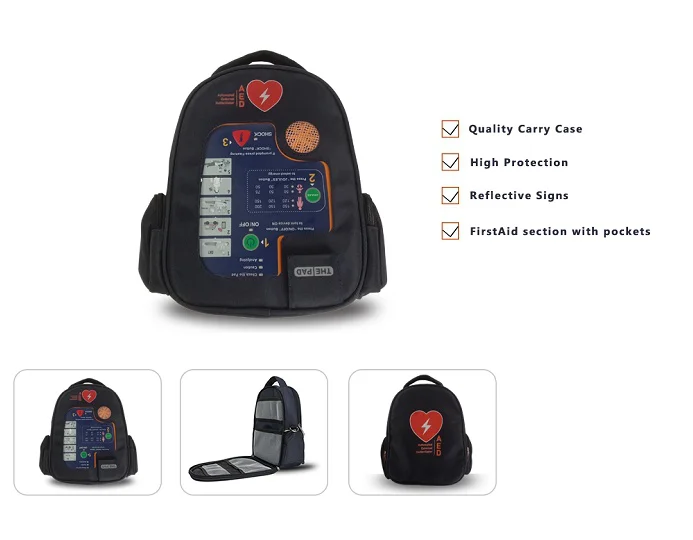

    Convenient Storage

    • Carrying bag includes an additional compartment for first aid supplies and accessories.

    Power Supply

    • Long-life disposable LiMnO₂ battery with a lifespan of ≥5 years.

    Included Accessories

    • Carrying case
    • Battery
    • Electrode pads

    Automated Self-Test Function

    • Performs daily, weekly, and monthly automatic self-tests to ensure device readiness.

    AED Storage Software

    • Standard software configuration included for AED monitoring, data storage, and event management.

    Product Specifications

    Detailed technical specifications and performance parameters

    Parameter Specification
    Waveform Biphasic Truncated Exponential (BTE)
    Maximum Energy Output 200 Joules
    Patient Modes Adult / Child
    Self-Test Function Automatic daily, weekly, and monthly self-tests

    Energy Settings

    Patient Mode Energy Sequence
    Child Mode 50J → 50J → 75J
    Adult Mode 150J → 150J → 200J

    Performance

    Parameter Specification
    Charge Time (New Battery, 25°C) Less than 6 seconds to 150J
    Less than 8 seconds to 200J
    Voice Guidance Extensive voice prompts for step-by-step rescue guidance
    Visual Guidance LED prompts and indicators
    Controls Two buttons: ON/OFF and Shock

    Data Management

    Parameter Specification
    ECG Storage Capacity Up to 1,800 events
    Data Transmission Infrared / Bluetooth

    Battery

    Parameter Specification
    Battery Type Non-rechargeable Li-MnO₂ Cell
    Power 12V, 3000mAh

    Environmental Conditions

    Parameter Specification
    Operating Temperature 0°C to 40°C
    Operating Humidity 30%–95% RH (non-condensing)
    Storage Temperature (without battery) -20°C to 55°C
    Storage Humidity (without battery) Up to 93% RH (non-condensing)

    Related Accessories

    Compatible accessories to extend functionality

    Standard Accessories Included

    Item Quantity
    AED Pad 1 pcs
    Battery 1 pcs
    AED Carrying Case 1 pcs
    Cleaning Cloth 1 pcs

    Optional Accessories

    Item
    AED Cabinet
    AED Sign
    AED Wall Bracket
    IrDA USB Adapter for ECG Data Transfer
    Bluetooth Adapter for ECG Data Transfer

    Package Includes

    The AED package includes essential accessories required for immediate emergency use, safe storage, and routine maintenance. Optional accessories such as AED cabinets, signs, wall brackets, and data transfer adapters enhance device accessibility, installation flexibility, and ECG event data management for hospitals, emergency services, workplaces, and public access locations.

    Product Overview

    Core specifications at a glance

    SKU MDT04-D00003
    Gross Weight 3.3kg
    Package Size 40×33×18cm
    QTY/BOX 1pcs
