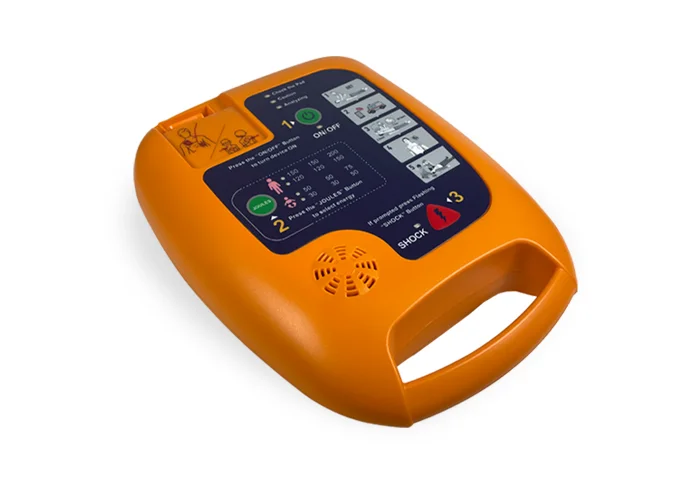

    Defi®5s Pro

    Advanced Biphasic AED with 4 Energy Sequences for Different Patient Needs

    4 Selectable Energy Levels

    Adult Energy Sequences

    • Sequence 1: 120 Joules → 120 Joules → 150 Joules
    • Sequence 2: 150 Joules → 150 Joules → 200 Joules

    Pediatric Energy Sequences

    • Sequence 1: 30 Joules → 30 Joules → 50 Joules
    • Sequence 2: 50 Joules → 50 Joules → 75 Joules

    User Interface Customization

    • Language Selection: Supports two selectable languages
    • Volume Adjustment: 5 adjustable levels for volume control

    Email this page
    CE CE Mark
    ABS Made of ABS
    LATEX Natural Latex Free

    Product Features

    Discover the advanced capabilities that set our products apart

    User Customization

    • Multilingual support: Supports two selectable languages and 5 adjustable volume levels.

    Energy Modes

    • Adult and pediatric modes: Customized settings with two selectable energy sequences per mode.
    • Selectable energy range: Flexible output energy from 30J to 200J, suitable for patients of various ages.
    • Defibrillation technology: Biphasic Truncated Exponential (BTE) waveform to provide effective and reliable energy delivery.

    Durability and Design

    • Protection rating: IPX55 rating for water and dust resistance.
    • Battery: Long-life LiMnO₂ single-use battery, with a service life of ≥5 years.

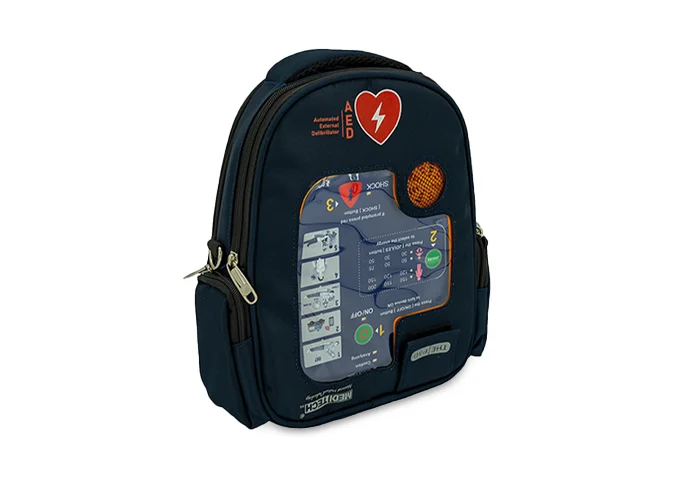

    • Portability: Ready-to-use carrying case with additional storage space, allowing the AED to be operated without removing it from the case.

    Safety and Monitoring

    • Self-test: Automatic daily, weekly, and monthly tests to verify device readiness.
    • Safety System: A safety lock system to help prevent unintended shock delivery.
    • User Guidance: Clear voice prompts and visual indicators provide step-by-step guidance during the rescue process.

    Data Management — DefiSoft Software

    • Connectivity: Data transfer to PC via infrared as a standard feature.
    • Rescue Records Management: Store rescue events in a database and enable data import, deletion, and ECG waveform analysis.
    • Event Replay: Record event details, including time, patient impedance, voltage, and CPR performance data for post-event review.
    • Software Compatibility: Compatible with Meditech Defi® 5s Pro memory management software for device configuration and advanced data management.

    Product Specifications

    Detailed technical specifications and performance parameters

    Defibrillation System

    Parameter Specifications
    Waveform Biphasic Truncated Exponential (BTE) waveform
    Maximum Output Energy 200 joules
    Patient Mode Adult / Pediatric
    Energy Selection Adjustable energy sequences for adult and pediatric patients
    Adult Energy Sequences 120J → 120J → 150J / 150J → 150J → 200J
    Pediatric Energy Sequences 30J → 30J → 50J / 50J → 50J → 75J

    Performance

    Parameter Specifications
    Self-Test Function Automatic daily, weekly, and monthly self-tests
    Shipping Time (new battery, 25°C) Less than 6 seconds to 150J, and less than 8 seconds to 200J
    Voice prompts Comprehensive voice prompts to guide the user step by step during the rescue process
    Visual prompts LED indicators to provide operating guidance
    Controls Two buttons: On/Off and Shock

    Data management

    Parameter Specifications
    ECG storage capacity Up to 1,800 events
    Data transfer Infrared / Optional Bluetooth

    Battery

    Parameter Specifications
    Battery type Non-rechargeable Li-MnO₂ cell
    Power source 12V DC, 3000mAh

    Environmental conditions

    Parameter Specifications
    Operating temperature 0°C to 40°C
    Operating humidity 30% to 95% RH, non-condensing
    Storage temperature without battery -20°C to 55°C
    Storage humidity without battery Up to 93% RH, non-condensing

    Related Accessories

    Compatible accessories to extend functionality

    Standard Accessories Included

    Item Quantity
    AED Pad 1 Piece
    Battery 1 Piece

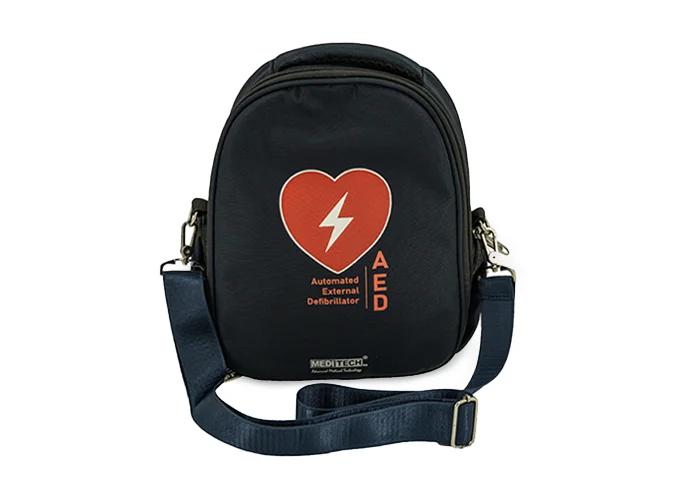

    AED Carrying Bag 1 Piece
    Cleaning Cloth 1 Piece

    Optional Accessories

    Item
    AED Cabinet
    AED Sign
    AED Wall Bracket
    IrDA USB Adapter for ECG Data Transmission
    Bluetooth Adapter for ECG Data Transmission

    Package Contents

    The AED package includes essential accessories to support immediate emergency use, safe storage, and routine maintenance. Optional accessories provide additional solutions for AED visibility, installation, and ECG data management, helping healthcare facilities, workplaces, and public access locations maintain effective emergency response readiness



    Product Overview

    Core specifications at a glance

    SKU MDT04-D00006
    Gross Weight 3.3kg
    Package Size 40×33×18cm
    QTY/BOX 1pcs
