    Home Product Defibrillators Defibrillator Monitors Defi® Xpress

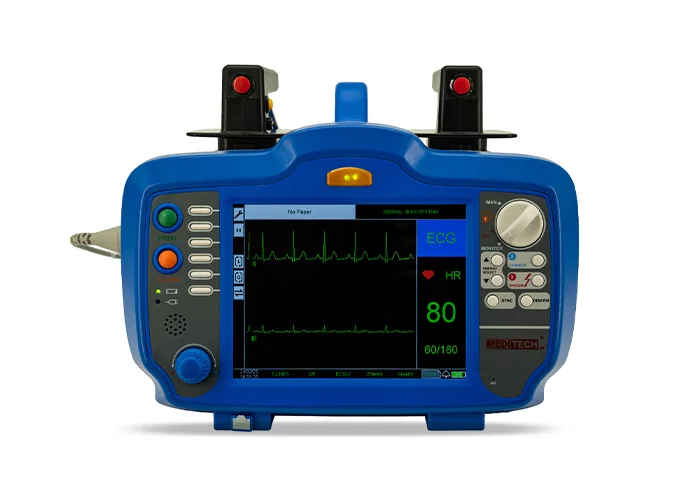

    Defi® Xpress

    Multi-Parameter Defibrillator & Patient Monitor.

    The Defi® Express combines manual defibrillation, AED mode, and multi-parameter monitoring in one compact device, supporting BLS and ACLS emergency care.   Key features:
    • Manual defibrillation: 2–360 joules
    • AED mode: 50–200 joules
    • Monitoring: ECG, SpO₂, NIBP, EtCO₂
    • Optional pacer function
    • Audible and visual alarms for critical events
    Designed for emergency departments, ambulances, clinics, and healthcare facilities, it provides rapid response and reliable cardiac care.
    Shop
    CE CE Mark
    ABS Made of ABS
    LATEX Natural Latex Free

    Product Features

    Discover the advanced capabilities that set our products apart

    Display and User Interface

    • High-resolution 8-inch color TFT display
    • Clear display of waveforms, parameters, energy settings, and system status.

    Defibrillation Performance

    • Energy options: 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 joules.
    • Charge time: Less than 7 seconds with a new, fully charged battery.
    • Energy display: The device displays the selected energy and the delivered energy.
    • Charge prompts: Audible and visual prompts.
    • Chest impedance measurement range: 0–250 ohms.
    • Waveform: Biphasic.
    • Operating modes:
      • Manual defibrillation mode
      • AED mode: Automatic cardiac rhythm analysis and automatic charging for three cycles, with programmable energy levels.

    Alarms and Prompts

    • Integrated audible alarms to alert to critical conditions.
    • Visual indicators for charging status, analysis, and readiness to deliver a shock.

    Paddles and Printing

    • Reusable external adult and pediatric paddles, with integrated pediatric paddles.
    • Built-in thermal printer for event documentation and real-time ECG plotting.

    Standard Monitoring Parameters

    • ECG: Leads I, II, III, aVR, aVL, aVF, V.

    Optional Units and Accessories

    • SpO₂ Module
    • NIBP Module
    • EtCO₂ Module
    • Pacer Function
    • Device Cart
    • Carrying Bag

    Product Specifications

    Detailed technical specifications and performance parameters

    Parameter Specifications
    Diagnostic Frequency Options Diagnostic filter 0.05–150 Hz
    Filtered Diagnostic Mode 0.05–40 Hz
    Frequency Response User-selectable frequency response

    Defibrillation Specifications

    Defibrillation Technology

    Parameter Specifications
    Output Waveform Biphasic Truncated Exponential (BTE) waveform
    Tested Load Range Resistive loads 25Ω, 50Ω and 100Ω
    Waveform Accuracy Output waveform parameters within ±10%

    Output Energy Accuracy

    Load Condition Accuracy
    50Ω Load ±10% or 1J, whichever is greater
    Load 25–100Ω ±15% or 1J, whichever is greater

    Energy Selection

    Parameter Specifications
    External Energy Levels 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 J

    Charging Performance

    Parameter Specifications
    Charge Time Less than 6 seconds at 200J using a Meditech Ni-MH 12V battery
    Charge Time After 15 Discharges Less than 12 seconds at 360J
    Charge Time Using AC Power Less than 15 seconds at 360J with AC voltage at 90% of nominal voltage

    Defibrillation Functions

    • Audible and graphical charge level indicator.
    • External adult paddles.
    • Pediatric paddle adapter.
    • Multifunction defibrillation electrodes for hands-free use.
    • Synchronized Cardioversion with shock delivery within 60 milliseconds.
    • Manual Disarm function via a switch on the front panel.

    Monitoring and Display

    Parameter Specifications
    Screen Type 8-inch color TFT screen
    Resolution 800 × 600 pixels
    Patient Input 3-wire and 5-wire patient cable

    ECG Monitoring

    ECG Display Parameters

    Parameter Specifications
    Sweep Speed 12.5 / 25 / 50 mm/s
    Lead Selection I, II, III, aVR, aVL, aVF, V
    Frequency Response – Operating Mode 0.7–20 Hz
    Frequency Response – Monitoring Mode 0.3–40 Hz
    Frequency Response – Diagnostic Mode 0.05–150 Hz
    Frequency Response – AED Mode 0.5–30 Hz
    Common Mode Rejection Ratio (CMRR) ≥60 dB
    Heart Rate Range 20–300 bpm
    Heart Rate Alarm Limits User-selectable

    ECG Display Settings

    Parameter Specifications
    ECG Size 0.125 / 0.25 / 0.5 / 1 / 2 / 4 cm/mV
    Auto Range Function Supported
    ECG Output 1 V/mV

    Alarm System

    Heart Rate / SpO₂ Alarm

    Parameter Specifications
    Audible Alarm 5 pulses, 800 Hz tone
    Visual Alarm Heart rate display flashes at 2 Hz

    Lead/Wire Disconnection Alarm

    Parameter Specifications
    Audible alarm Triple tone
    Visual indicator "Lead fault" message
    Additional indicator Wave loss indicator

    Physiological alarms – SpO₂ option

    • Audible and visual alarms.
    • Parameter value flashing at a rate of 2 Hz.
    • Alarm silence duration: 90 seconds.

    NIBP module – optional

    Parameter Specifications
    Measurement method Automatic oscillometric measurement (Oscillometric)
    Measurement modes Manual / Automatic
    Adult range 10–250 mmHg
    Pediatric range 10–200 mmHg
    Neonatal range 10–135 mmHg

    EtCO₂ Module – Optional

    Parameter Specifications
    Electrical Protection Class BF
    Power Source 12.0V ±0.2V DC
    Current Consumption Typical 100mA / Maximum 200mA
    Operating Temperature 5°C to 50°C
    Storage Temperature -20°C to 70°C
    Humidity 0–85% RH, non-condensing
    Dimensions 96 × 91 × 36 mm
    CO₂ Measurement Range 0–13%
    Accuracy ±3 mmHg or less than ±10% of reading
    Respiration Rate Range 3–60 bpm
    Respiration Rate Accuracy ±1 bpm
    Warm-up Time 10 seconds
    Flow Rate 50-250 mL/min
    Interface TTL / RS232, digital serial interface

    Pacemaker Module (Pacer) – Optional

    Parameter Specifications
    Type VVI
    Pulse waveform Constant-current rectangular wave
    Output current 0–180 mA, ±10% or 5 mA
    Pacing rate 30–180 ppm
    Accuracy ±1.5%
    Electrodes Multifunction defibrillation and pacing electrodes
    Pulse width 20 ±1.5 ms
    Output protection Fully isolated and defibrillation-protected

    Thermal Recorder

    Parameter Specifications
    Type High-precision thermal recorder
    Recorded data Date and time
    ECG waveform
    ECG derivation
    Gain
    Heart rate
    Defibrillation events
    Treatment summary
    ACLS events

    Related Accessories

    Compatible accessories to extend functionality

    Standard Accessories Included

    Item Quantity
    ECG Cable (5 Leads) 1 Piece
    AED Adapter Pad 1 Piece
    AED Pad 1 Piece
    Grounding Cable 1 Piece
    Power Cable 1 Piece
    Thermal Paper Roll 1 Piece
    Cleaning Cloth 1 Piece


    Optional Accessories

    Patient Monitoring Accessories

    Item
    AED Pad for Child
    ECG Cable (3 Leads)
    ECG Alligator Clips (Metal)
    SpO₂ Cable (Adult Hard Shell Sensor)
    SpO₂ Cable (Adult Soft Shell Sensor)
    SpO₂ Cable (Neonatal Soft Sensor)
    SpO₂ Cable (Pediatric Hard Shell Sensor)
    SpO₂ Cable (Pediatric Soft Shell Sensor)
    SpO₂ Cable (Pediatric Finger Clip)
    SpO₂ Cable (Y-Type Multi-Site)
    External SpO₂ Cable


    NIBP Accessories


    Item
    NIBP Cuff (Infant 8–14 cm, 5 Pieces/Bag)
    NIBP Cuff (Pediatric 13–20 cm, 5 Pieces/Bag)
    NIBP Cuff (Small Adult 18–26 cm, 5 Pieces/Bag)
    NIBP Cuff (Adult 26–35 cm, 5 Pieces/Bag)
    NIBP Cuff (Long Adult 29–38 cm, 5 Pieces/Bag)
    NIBP Cuff (Large Adult 32–42 cm, 5 Pieces/Bag)
    NIBP Cuff (Large Long Adult 35–44 cm, 5 Pieces/Bag)
    NIBP Cuff (Thigh 42–50 cm)
    NIBP Tube 150 cm
    Paper Roll


    Mounting & Data Accessories


    Item
    Defibrillator Wall Mount (3 Models Available)
    Defibrillator Cart (5 Models Available)
    Defibrillator Carry Case
    EtCO₂ Module
    IrDA USB Adapter for ECG Data Transfer
    ECG Data Transfer Software CD


    Package Contents

    Defibrillator Monitor Package Includes Essential Accessories for ECG Monitoring, AED Operation, Power Supply, Printing, and Routine Maintenance. A Wide Range of Optional Accessories Supports Multi-Parameter Patient Monitoring, Including SpO₂, NIBP, EtCO₂, and ECG Applications, While Mounting Solutions, Transport Cases, and Data Management Tools Provide Flexible Solutions for Hospitals, Emergency Departments, Ambulances, and Critical Care Environments.

    Product Overview

    Core specifications at a glance

    SKU MDT04-D00014
    Color White ,Blue
    Gross Weight 10.5kg
    Package Size 49×53×49cm
    QTY/BOX 1pcs
