    Cardios

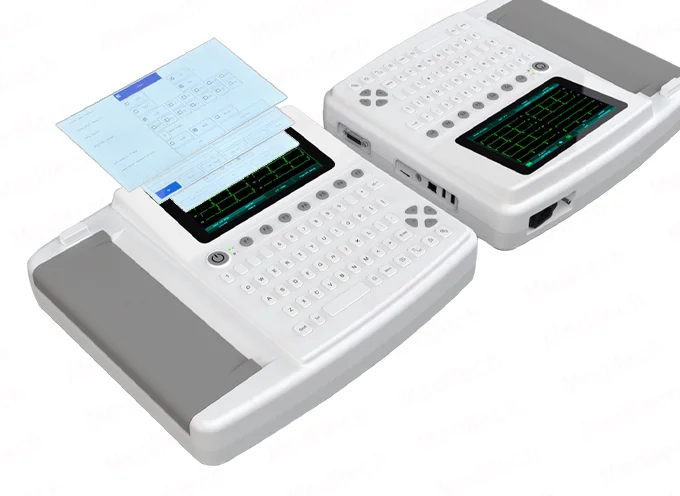

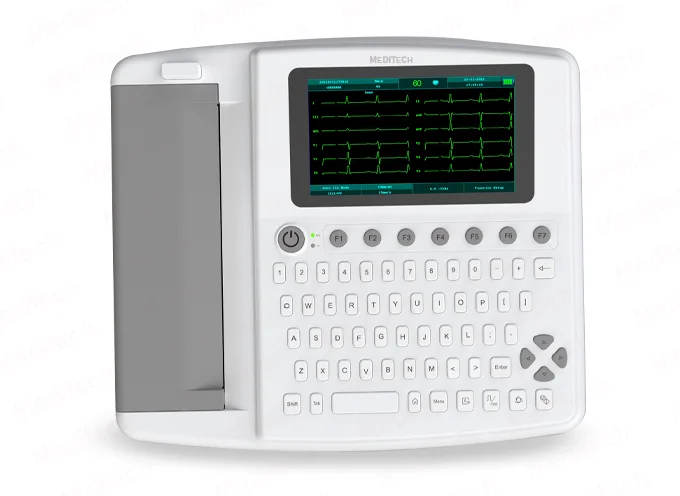

    7-inch color touchscreen Electrocardiograph (ECG) with 12-lead analysis and interpretation

    12-Channel ECG Machine Features a 7-inch high-resolution color touchscreen, a full alphanumeric keyboard, and simultaneous acquisition and display of 12-channel ECG. With automatic ECG measurement and interpretation, large internal memory, rechargeable lithium battery, and PC connectivity, it provides efficient and reliable cardiac diagnosis for hospitals and clinics.
    Email this page
    CE CE Mark
    ABS Made of ABS
    LATEX Natural Latex Free

    Product Features

    Discover the advanced capabilities that set our products apart

    • 7-inch high-resolution color touchscreen Provides clear display of ECG waveforms with easy and intuitive touchscreen operation.
    • Full alphanumeric keyboard Equipped with shortcut keys for fast and efficient patient data entry.
    • 12-lead ECG acquisition and display Simultaneous acquisition and real-time display of all 12 ECG leads.
    • Automatic ECG measurement and interpretation Provides rapid ECG analysis and interpretation to assist clinical assessment.
    • Large internal memory Ability to store up to 1,000 patient cases for review and data management.
    • Built-in rechargeable lithium battery Supports portable operation and continuous clinical use.

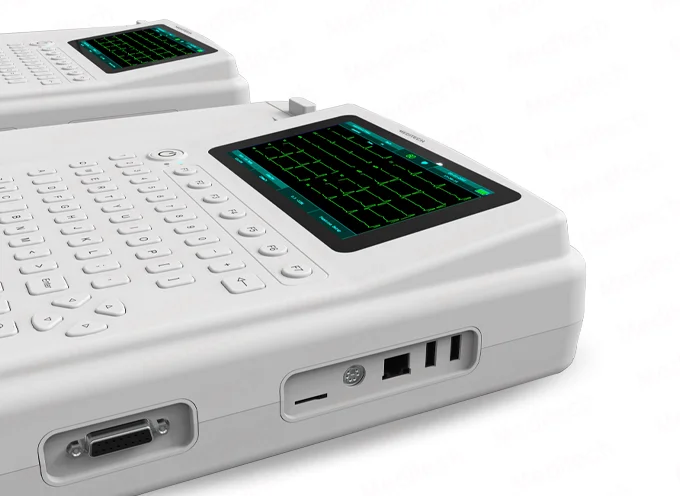

    • USB data transfer Allows transfer of ECG data to a computer for storage and management.
    • ECG Replay software support Allows saving, reviewing, and opening ECG reports on a computer.
    • Optional Cardiosoft Pro software Supports transfer, storage, review, and printing of ECG reports.

    Product Specifications

    Detailed technical specifications and performance parameters

    ECG Acquisition

    Parameter Specifications
    Lead System Standard 12-Lead
    Input Type Floating input with defibrillation protection
    Patient Leakage Current <10 μA
    Input Impedance ≥5 MΩ
    Frequency Response 1 Hz–75 Hz
    Time Constant >3.2 s
    Common Mode Rejection Ratio (CMRR) >60 dB
    EMG Noise Filter 25 Hz / 35 Hz (-3 dB)
    DC Polarization Voltage ±300 mV
    Noise Level ≤15 μVp-p

    Recording System

    Parameter Specifications
    Recording Method Thermal array printing system
    Recording Paper High-speed thermal paper

    Paper Speed

    • Automatic recording:25 mm/s, 50 mm/s (error ±5%)
    • Rhythmic Recording:25 mm/s, 50 mm/s (Error ±5%)
    • Manual Recording:5 / 6.25 / 10 / 12.5 / 25 / 50 mm/s (Error ±5%)

    Sensitivity Selection

    • 2.5 / 5 / 10 / 20 mm/mV
    • 5 Selectable Levels
    • Default Sensitivity: 10 mm/mV ±0.2 mm/mV

    ECG Measurement & Analysis

    Automatic Recording

    • Automatic Recording Setting According to the Specified Format
    • Automatic Lead Switching
    • Automatic Measurement and Analysis

    Manual Recording

    • Recording Setting According to the Specified Format
    • Manual Measurement Lead Selection

    Measurement Parameters

    • Heart Rate (HR)
    • P-R Interval
    • P Duration
    • QRS Duration
    • T Duration
    • Q-T Interval
    • Q-Tc
    • P Axis
    • QRS Axis
    • T Axis
    • R(V5)
    • S(V1)
    • R(V5) + S(V1)

    Safety & Protection

    Parameter Specifications
    Safety classification Class I, Type CF
    Defibrillation Protection Defibrillation-proof applied part
    Fuse Specifications 2 × φ5×20 mm AC slow-blow fuse; T1.6A/250V (220V power supply)

    Power Source

    Parameter Specifications
    AC Power Supply 100–240V, 50/60Hz
    Battery Rechargeable lithium battery
    Battery Specifications DC 7.4V / 3700 mAh

    Operating Conditions

    Parameter Specifications
    Operating Temperature +5°C to +35°C
    Relative Humidity ≤80% RH
    Atmospheric Pressure 86 kPa–106 kPa

    Transport & Storage Conditions

    Parameter Specifications
    Storage temperature -10°C to +55°C
    Humidity during storage ≤95% RH
    Atmospheric pressure 50 kPa–106 kPa

    Related Accessories

    Compatible accessories to extend functionality

    Standard Accessories Included

    Item Quantity
    Chest electrodes 6 pieces
    Clamp electrodes 4 pieces
    EKG cable 1 piece
    Ground wire 1 piece
    Paper roll 1 piece
    Power cable 1 piece
    Cleaning cloth 1 piece

    Optional Accessories

    Item
    Carrying bag
    USB cable + CD "Cardiosoft Pro" software
    Thermal paper
    ECG cart
    Computer accessories
    Printer accessories

    Package Contents

    ECG System Package includes essential accessories for ECG acquisition, recording, power connection, and routine maintenance. Optional accessories provide additional solutions for data transfer, navigation, software integration, and printing requirements.

    Product Overview

    Core specifications at a glance

    SKU MDT06-D00001
    Gross Weight 5.5kg
    Package Size 43×20×42cm
    QTY/BOX 1pcs
