    Home Product ECG & Cardiac Diagnostics 12-Channel ECG Machines EKG1212T

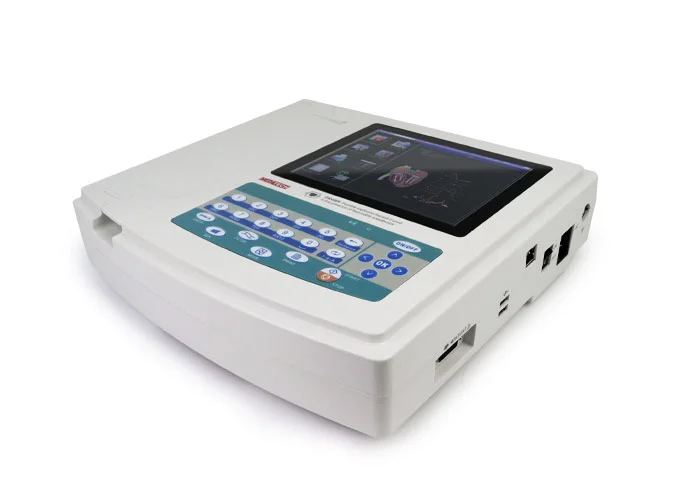

    EKG1212T

    12-Channel ECG Electrocardiograph | 8-Inch Touchscreen ECG Machine

    12-lead ECG machine advanced, equipped with an 8-inch color touchscreen, support for multilingual reports, and large data storage capacity. With simultaneous 12-lead ECG acquisition, built-in digital signal processing, and dual AC/DC operation with a rechargeable battery, it provides reliable and efficient cardiac assessment for hospitals and clinics.

    Email this page
    CE CE Mark
    ABS Made of ABS
    LATEX Natural Latex Free

    Product Features

    Discover the advanced capabilities that set our products apart

    Screen and Patient Data Entry

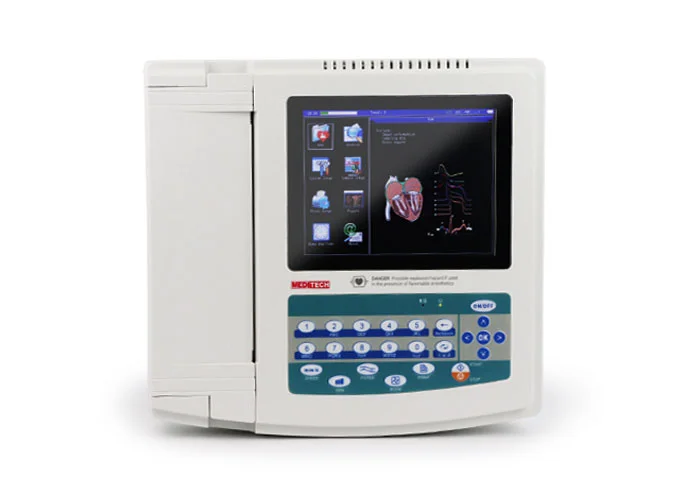

    • High-resolution color screen measuring 8 inches.
    • Touchscreen for easy and convenient patient data entry.

    Memory and Recording

    • Internal memory for storing more than 1,000 patient cases.
    • Support for multiple recording modes.

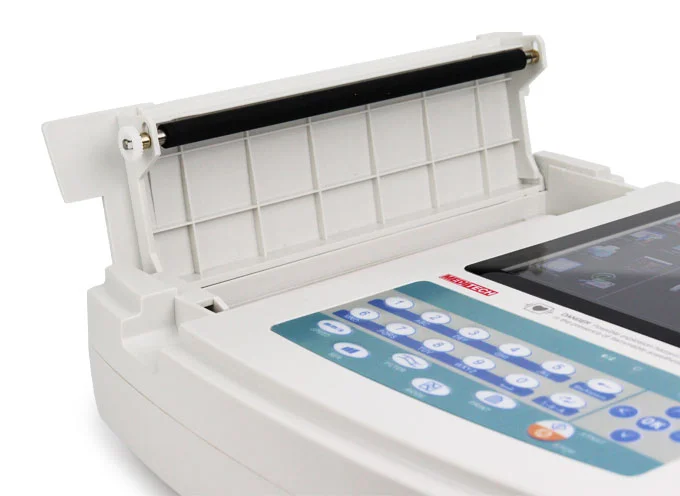

    • High-resolution thermal printer with a width of 210/216 mm.
    • Adjustable recording speeds: 6.25, 12.5, 25 and 50 mm/s with accuracy of ±5%.

    ECG Measurement and Analysis

    • Built-in interpretation program with support for four age categories.
    • Display of ECG waveform and heart rate in real time.
    • Pacemaker pulse detection with protection function.
    • Automatic ECG measurement and interpretation with the ability to print results.
    • ECG reanalysis using 12 leads with the ability to review waveforms.

    Measurement Parameters

    • Heart rate HR
    • PR interval
    • P wave duration
    • QRS complex duration
    • T wave duration
    • QT / QTc interval
    • P axis
    • QRS axis
    • T axis
    • R(V5)
    • S(V1)
    • R(V5)+S(V1)

    Advanced Analysis

    • FCG analysis
    • HFCG analysis
    • QTD analysis
    • HRV analysis

    Connectivity and Software

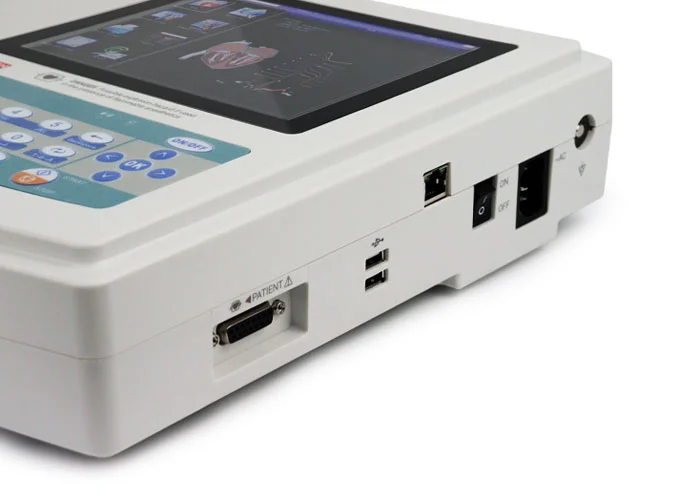

    • Standard USB interface with the option to add optional LAN connectivity.
    • Cardiosoft Pro PC software for transferring, storing, reviewing and printing ECG data and reports.

    Additional Features

    • Support for multiple languages.
    • Comprehensive ECG analysis functions to meet the requirements of clinical and professional use.

    Product Specifications

    Detailed technical specifications and performance parameters

    Parameter Specifications
    Leads Standard 12-wire ECG
    Input Type Floating input with defibrillation protection
    Patient Leakage Current < 10 μA
    Input Impedance ≥ 5 MΩ
    Frequency Response 1 Hz ~ 75 Hz
    Time Constant > 3.2 s
    CMRR > 60 dB
    EMG Noise Filter 25 / 35 Hz (-3 dB)
    Recording Method Thermal array printing system
    Recording Paper Width 210 mm / 216 mm thermal paper
    Automatic Recording Speed 25 mm/s, 50 mm/s (Error: ±5%)
    Rhythm Recording Speed 25 mm/s, 50 mm/s (Error: ±5%)
    Manual Recording Speed 5, 6.25, 10, 12.5, 25, 50 mm/s (Error: ±5%)
    Sensitivity Selection
    2.5, 5, 10, 20, 40 mm/mV (Error: ±5%) Default Sensitivity10 mm/mV ±0.2 mm/mVAuto Recording ModeAuto format setting with auto lead switching, measurement, and analysisManual Recording ModeManual lead selection and measurement line adjustmentMeasurement ParametersHR, PR Interval, P Duration, QRS Duration, T Duration, QT Interval, QTc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)Safety ClassificationClass I, Type CF Defibrillation-Proof Applied PartDC Polarization Voltage±300 mVNoise Level≤15 μVp-pFuse Specifications2 × φ5×20 mm AC slow-blow fuse; T1.6A/250VPower SourceAC 100–240V, 50/60Hz; DC 7.4V 3700mAh Rechargeable Lithium BatteryOperating Temperature+5°C ~ +35°COperating Humidity≤80% RHOperating Atmospheric Pressure86 kPa ~ 106 kPaStorage Temperature-10°C ~ +55°CStorage Humidity≤95% RHStorage Atmospheric Pressure50 kPa ~ 106 kPa

    Related Accessories

    Compatible accessories to extend functionality

    Standard Accessories Included

    Item Quantity
    Chest electrodes 6 pieces
    Clip electrodes 4 pieces
    EKG cable 1 piece
    USB cable 1 piece
    CD "Cardiosoft Pro" software 1 piece
    Ground wire 1 piece
    Paper roll 1 piece
    Power cable 1 piece
    Cleaning cloth 1 piece

    Optional Accessories

    Item
    Carrying bag
    Thermal paper
    ECG cart
    Computer Accessories
    Printer Accessories

    Package Contents

    The ECG system package includes all essential accessories for ECG signal acquisition, data transmission, recording, power supply, and routine maintenance. Optional accessories provide additional solutions for navigation, software integration, and printing requirements.

    Product Overview

    Core specifications at a glance

    SKU MDT06-D00011
    Gross Weight 7.4kg
    Package Size 41×42×20cm
    QTY/BOX 1pcs
