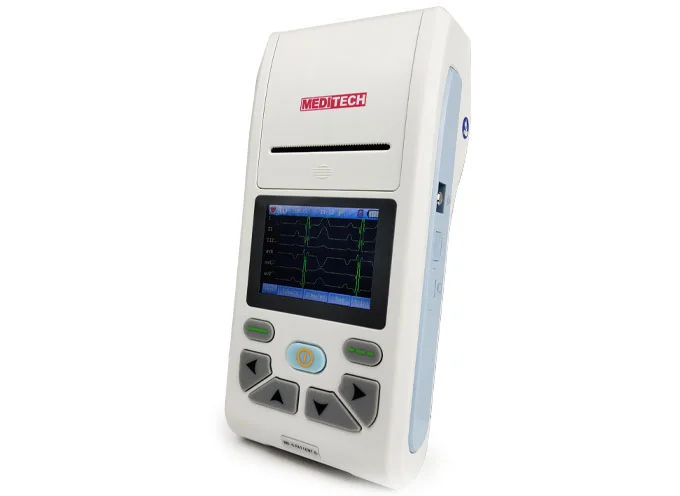

    EKG101T

    Smart portable 3-channel ECG device with interpretation, color touchscreen, and portable design.

    Smart Handheld 3-Channel ECG Device is a compact and smart electrocardiography device equipped with a color touchscreen, automatic ECG interpretation, and a portable design. It provides fast and accurate ECG signal acquisition with easy operation, making it ideal for hospitals, clinics, emergency care, and mobile cardiac screening.

    Email this page
    CE CE Mark
    ABS Made of ABS
    LATEX Natural Latex Free

    Product Features

    Discover the advanced capabilities that set our products apart

    • Digital isolation and signal processing – Provides accurate and clear ECG readings with reduced noise and interference.
    • Patient data management – Allows recording and managing patient information, including name, age, ID number, and gender, using the touch keyboard.
    • Large storage capacity – Can store up to 450 ECG tests, with the ability to add up to 100 additional cases using an external SD card.
    • Automatic measurement, analysis, and interpretation – Automatically calculates, analyzes, and interprets standard ECG parameters.
    • Real-time information display – Continuously displays leads, sensitivity, paper speed, filter status, and other parameters.
    • Flexible printing options – Allows selecting print mode, report length, paper speed, and printed report format.
    • Connectivity and data transfer options – Equipped with USB 2.0 and LAN ports for data transfer, and compatible with Cardiosoft Pro PC software for downloading data, reviewing reports, and printing them.
    • Safety and power supply – Class I type CF applied part with defibrillator protection, and operates on an AC/DC power source with a built-in rechargeable lithium-polymer battery.
    • High-quality ECG signal – Utilizes digital signal processing with AC, DFT, and EMG filters to help obtain accurate and clear ECG readings.

    Product Specifications

    Detailed technical specifications and performance parameters

    ECG Acquisition & Signal Performance

    Parameter Specifications
    Lead System 12 standard leads
    Input Type Floating input with defibrillation protection
    Patient Leakage Current <10 μA
    Input Impedance ≥5 MΩ
    Frequency Response 1 Hz–75 Hz
    Time Constant >3.2 s
    Common Mode Rejection Ratio (CMRR) >60 dB
    DC Polarization Voltage ±300 mV
    Noise Level ≤15 μVp-p

    ECG Filtering

    Filter Specifications
    EMG Noise Filter 25 Hz / 35 Hz (-3 dB)

    Registration System

    Parameter Specifications
    Recording Method Thermal array printing system
    Recording Paper 50 mm (W) × 20 m (L) high-speed thermal paper

    Printing Speed

    Recording Mode Speed
    Automatic Recording 25 mm/s, 50 mm/s (Accuracy ±5%)
    Rhythm Recording 25 mm/s, 50 mm/s (Accuracy ±5%)
    Manual Recording 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s (Accuracy ±5%)

    Sensitivity Settings

    Parameter Specifications
    Sensitivity Options 2.5 / 5 / 10 / 20 / 40 mm/mV
    Accuracy ±5%
    Default Sensitivity 10 mm/mV ±0.2 mm/mV

    Related Accessories

    Compatible accessories to extend functionality

    Standard Accessories Included

    Item Quantity
    Chest electrodes 6 pieces
    Clip electrodes 4 pieces
    EKG cable 1 piece
    USB cable 1 piece
    CD "Cardiosoft Pro" software 1 piece
    Ground wire 1 piece
    Paper roll 1 piece
    Power cable 1 piece
    Cleaning cloth 1 piece

    Optional Accessories

    Item Description
    ECG cart Mobile holder for convenient transport and fixation
    Carrying bag Preservative for storage and transport
    Thermal paper Additional printing paper supply
    Computer accessories Computer connection accessories and integration tools
    Printer accessories Additional printer-related accessories

    Package contents

    ECG system package includes all essential accessories required for ECG signal acquisition, printing, software operation, and routine maintenance. Optional accessories such as ECG cart, carrying case, PC accessories, and printer accessories provide enhanced mobility, data management, and workflow flexibility for clinical environments.

    Product Overview

    Core specifications at a glance

    SKU MDT06-D00002
    Gross Weight 2.3kg
    Package Size 28×25×30cm
    QTY/BOX 1pcs
