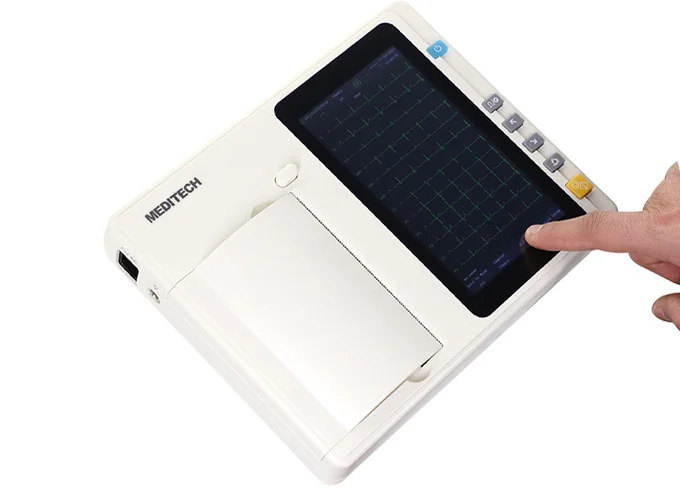

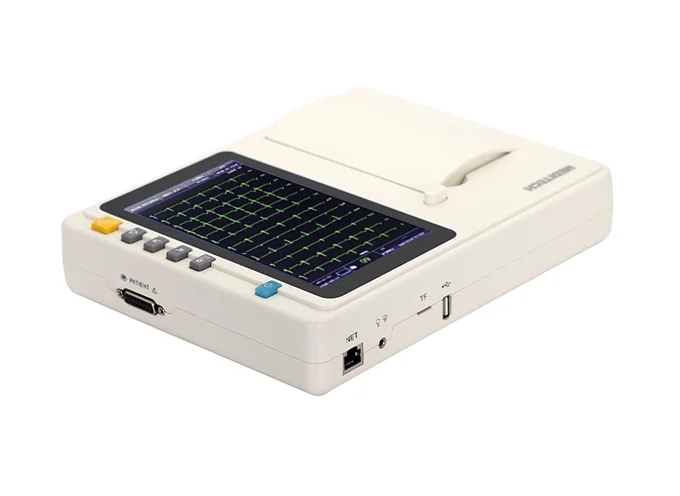

    ECG101S

    6-Channel ECG Electrocardiograph | Advanced and Lightweight ECG Device

    Advanced ECG Machine is a portable and smart electrocardiogram device designed for accurate cardiac diagnosis and efficient workflow. It features a 7-inch color touchscreen, large storage memory, automatic ECG interpretation, rechargeable battery, and advanced analysis functions, and provides a complete solution for hospitals, clinics, and mobile cardiac screenings.

    Email this page
    CE CE Mark
    ABS Made of ABS
    LATEX Natural Latex Free

    Product Features

    Discover the advanced capabilities that set our products apart

    • 7-inch Color Touch Screen & Keyboard Easy operation with convenient patient information management.
    • Large Memory Capacity Internal storage for over1,000 Cases, expandable up to10,000 Caseswith external memory.
    • Automatic ECG Analysis & Interpretation Provides fast and accurate ECG measurement, assessment, and interpretation.
    • Portable Power Design Built-in rechargeable lithium-ion battery supports mobile operation.
    • Flexible Recording Settings Adjustable paper speeds:6.25 / 12.5 / 25 / 50 mm/s(±5% accuracy).
    • Data Communication Standard USB interface with optional LAN connection for data transfer.
    • PC Software Support Compatible withCardiosoft Profor ECG storage, review, analysis, and report printing.
    • Advanced ECG Analysis Supports 12-lead ECG re-analysis with additional functions including:
      • FCG Analysis
      • HFCG Analysis
      • QTD Analysis
      • HRV Analysis
    • Easy-to-Use Design Multi-language Support and Portable Carrying Case Included.

    Product Specifications

    Detailed technical specifications and performance parameters

    ECG Acquisition

    Parameter Specifications
    Lead System Standard 12-Lead
    Input Circuit Defibrillator Protection
    Acquisition Mode Synchronous 12-Lead Acquisition and Asynchronous Acquisition
    Measurement Range ±5 mVpp
    Time Constant ≥3.2 s
    Frequency Response 0.05 Hz–150 Hz (-3 dB)
    Sampling Rate 1000 Samples/s/Channel

    Signal Performance

    Parameter Specifications
    Sensitivity 2.5 / 5 / 10 / 20 mm/mV
    Input Impedance ≥50 MΩ
    Input Circuit Current
    <0.05 μA Noise Level<15 μVp-pPatient Leakage Current<10 μA (220V–240V)CMRR100 dB

    Filter Settings

    Filter Type Options
    EMG Filter 25 Hz / 30 Hz / 40 Hz
    Low Pass Filter 75 Hz / 100 Hz / 150 Hz
    DFT Filter 0.05 Hz / 0.15 Hz / 0.25 Hz / 0.32 Hz / 0.5 Hz / 0.67 Hz / ADS
    AC Filter 50 Hz / 60 Hz

    Recording System

    Parameter Specifications
    Recording Method Thermal Array Printing
    Recording Paper 80 mm × 30 m Roll
    Paper Speed 6.25 / 12.5 / 25 / 50 mm/s

    Recording Modes

    • Auto Recording:3CH×4+1R, 3CH×4, 6CH×2
    • Manual Recording:4CH, 3CH, 2CH, 1CH
    • Recording Systems:Any selectable wire

    Connectivity

    • Network Interface
    • USB Host / Device
    • SD Card Support

    Safety Classification

    • IEC Class I / CF

    Power Source

    Parameter Specifications
    AC Power 100–240V, 50/60Hz, 30VA–100VA
    Battery Built-in rechargeable lithium battery
    Battery Specifications DC 14.8V / 2200mAh

    Related Accessories

    Compatible accessories to extend functionality

    Standard Accessories Included

    Item Quantity
    Chest electrodes 6 pieces
    Clip electrodes 4 pieces
    EKG cable 1 piece
    Paper roll 1 piece
    Power cable 1 piece
    Cleaning cloth 1 piece

    Optional Accessories

    Item
    Carrying bag
    USB memory
    Thermal paper
    ECG trolley
    Computer accessories
    Printer accessories

    Product Overview

    Core specifications at a glance

    SKU MDT06-D00005
    Gross Weight 2.7kg
    Package Size 32×27×18cm
    QTY/BOX 1pcs
