    Heartrec Eco

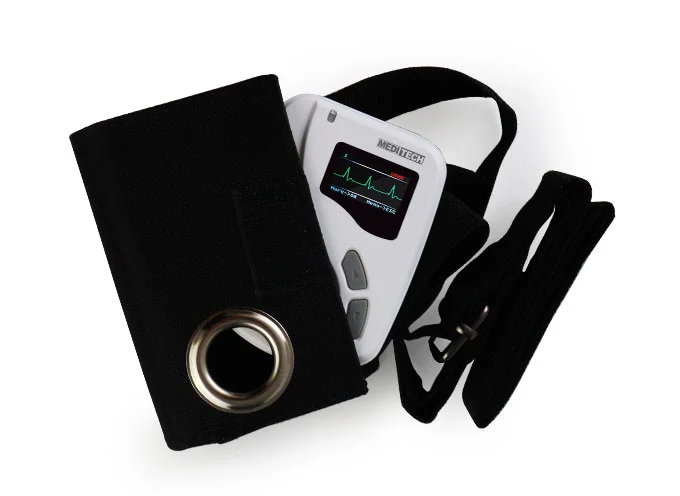

    HeartRec® Eco | 12-lead Holter ECG recorder with continuous 48-hour monitoring.

    HeartRec® Eco integrates an ECG recorder and advanced software analysis into a complete Holter monitoring solution. It provides continuous 12-channel ECG acquisition, long-term recording, and comprehensive waveform analysis for effective cardiac assessment.
    Email this page
    CE CE Mark
    ABS Made of ABS
    LATEX Natural Latex Free

    Product Features

    Discover the advanced capabilities that set our products apart

    • Two automatic operating modes: Supports 12-lead ECG acquisition using a 10-electrode cable.
    • Programmable recording duration: Supports continuous monitoring for 24 or 48 hours.
    • High sampling rate: Adjustable rate from 128 to 1,024 samples/channel/second, and up to 10,000 samples/channel/second.
    • High signal accuracy: ECG signal accuracy from 12 to 16 bits for high-precision recordings.
    • Independent pacing channel: Provides additional capability to record and review pacing signals.
    • Patient data management: Allows editing patient information and recording events and activities during the monitoring period.
    • Flexible analysis settings: Ability to adjust analysis parameters and perform reanalysis of ECG data.
    • Template editing: Supports reviewing and modifying ECG templates to improve analysis accuracy.
    • Event editing: Ability to add, edit, and review event markers easily.
    • ST segment analysis: Provides detailed analysis of ST segment changes.
    • Atrial fibrillation and flutter detection: Supports detection and confirmation of atrial fibrillation (AF) and atrial flutter (AFL).
    • Page browsing function: Allows quick and easy viewing and review of ECG waveforms.
    • Trend analysis: Displays and analyzes heart rate trends in the time and frequency domains.
    • QT analysis: Provides measurement and analysis of QT interval information.
    • Advanced analysis functions: Supports obstructive sleep apnea (OSA) analysis, pacemaker ECG review, and heart rate disorder analysis.
    • 12-lead ECG waterfall display: Provides comprehensive and sequential visualization of ECG recordings, facilitating data review and analysis.

    Product Specifications

    Detailed technical specifications and performance parameters

    ECG Performance

    Parameter Specifications
    Voltage Scale 1 mV ±5%
    Standard Sensitivity 10 mm/mV ±5%
    Noise Level ≤30 μV p-p
    Common Mode Rejection Ratio (CMRR) ≥60 dB
    Frequency Response 0.5 Hz–55 Hz (-3 dB)
    Time Constant ≥3.2 s
    Sweep Speed 25 mm/s ±5%
    DC Polarization Voltage ±300 mV DC, Sensitivity shift ≤±10%
    Lowest Signal Measurement 50 μV p-p
    Inter-Channel Interference ≤0.5 mm Waveform Deviation
    ECG Display 12-Channel isochronous ECG pattern

    Safety & Power

    Parameter Specifications
    Safety Classification Type B (Internally Powered Equipment)
    Power source DC 1.5V Battery

    Physical Specifications

    Parameter Specifications
    Dimensions 80.5 mm (L) × 59.5 mm (W) × 22 mm (H)
    Net Weight 61.5 g (without battery)

    Operating Environment

    Parameter Specifications
    Temperature 10°C–45°C
    Relative Humidity ≤85% RH (non-condensing)
    Atmospheric Pressure 860–1060 hPa

    Application Conditions:

    • Free from vibration, dust, corrosive substances, and flammable materials
    • Avoid extreme temperature and humidity conditions

    Transport & Storage Environment

    Parameter Specifications
    Temperature -40°C to +55°C
    Relative Humidity ≤85% RH
    Atmospheric Pressure 860–1060 hPa

    Related Accessories

    Compatible accessories to extend functionality

    Standard Accessories Included

    Item Quantity
    EKG Cable 1 Piece
    Carrying Case 1 Piece
    Battery 2 Pieces
    SD Card 1 Piece
    Cleaning Cloth 1 Piece

    Optional Accessories

    Item
    Rechargeable Battery
    Charger (Panasonic)

    Product Overview

    Core specifications at a glance

    SKU MDT06-D00006
    Gross Weight 0.6KG
    Package Size 21x20x10 cm
    QTY/BOX 1pcs
