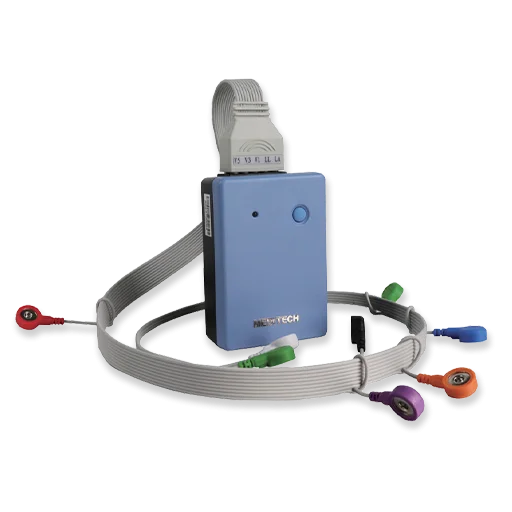

Cardios pro+

Stress ECG System – An advanced solution for stress testing and cardiac analysis.

Exercise ECG System is a professional cardiac stress testing solution designed for real-time ECG monitoring, exercise analysis, and comprehensive cardiac assessment. It provides accurate waveform recording, ST-segment analysis, trend evaluation, and flexible management of exercise protocols in clinical environments.

Email this page

CE Mark

Made of ABS

Natural Latex Free

All Meditech customers and healthcare professionals can submit equipment service tickets through the Customer Service Portal.

To receive two additional months of extended warranty, please register your product here.

To browse all support resources and contact information, please visit the Support Center.

Coming soon.

Product Features

Discover the advanced capabilities that set our products apart

Real-time ECG recording and printing Displays, records, and enables printing of ECG waveforms throughout the stress test period.
Advanced ST segment analysis Real-time ST segment monitoring with signal magnification, automatic calculation of ST parameters, and detailed analysis.
High-quality ECG signal processing Relies on advanced technologies to reduce the effects of muscle noise, baseline drift, and AC electrical interference.
Flexible stress test protocols Supports standard and custom test programs, with automatic settings for ECG printing and blood pressure measurement.
Event recording and review Allows the user to mark events during the test and compare event-related ECG waveforms with current signals for later review and printing.
Comprehensive trend analysis Displays and prints a variety of trend graphs, including:
- Heart rate (HR)
- Blood pressure (BP)
- Metabolic rate (METS)
- HR × BP
- Stress test trends
- ST segment level, slope, and effect
- 3D ST analysis (3D)
- J point analysis
- ST/HR analysis
Dynamic and static test review Provides comprehensive review of all stages of the stress test after completion.
Patient data management Supports import and export of patient data, data compression, storage management, and easy transfer of patient files.
Customizable system settings Includes language selection, waveform display formats, background settings, print configuration, filter settings, and parameter display options.
Wireless ECG signal acquisition Provides wireless ECG acquisition technology to improve freedom of movement and reduce interference during the test.
Multi-compatibility with stress test devices Supports connection with various stress test devices and equipment to provide an integrated solution for cardiac stress testing.

Product Specifications

Detailed technical specifications and performance parameters

Advanced Functions for Stress ECG Testing

Real-Time ECG Monitoring and Recording

Real-time ECG printing during the signal acquisition process.
Recording and saving complete ECG data throughout the stress test.
Support for dynamic and static review after the test ends for comprehensive evaluation.

ST Segment Analysis

Real-time monitoring of ST segment changes during the stress test.
Ability to zoom in and display user-selected leads for detailed waveform analysis.
Automatic calculation of ST segment-related parameters.
Provides comprehensive ST segment analysis, including:
- ST segment level
- ST segment depression and elevation (ST Depression/Elevation)
- ST segment slope
- 3D ST analysis (3D)
- J point and ST analysis
- ST/HR index

ECG Signal Quality and Interference Resistance Techniques

Advanced signal processing technology to improve the stability and quality of the ECG waveform.
Reduction of interference caused by:
- Muscle movement noise (EMG)
- Baseline drift
- AC electrical interference
Helps ensure reliable ECG signal acquisition during patient movement and exercise.

Stress Test Protocol Management

Supports:

Standard stress test protocols.
User-defined custom stress test protocols.

With automatic configuration capability for:

ECG printing timing.
Blood pressure measurement intervals.
Stress test stage settings.

Event Marking and Review

Allows the user to mark important events during the stress test.
Ability to compare the ECG waveform associated with the event with the current ECG signal.
Ability to review, edit, and print events after the test ends.

Trend Analysis and Reporting

Displays and prints a variety of trend graphs, including:

Heart Rate (HR)
Blood Pressure (BP)
Metabolic Equivalent (METS)
HR × BP Product
Stress Test Trends
ST Segment Level
ST Segment Slope
ST Segment Index
3D ST Direction
J Point Analysis
ST/HR Direction

Data Management and System Functions

Import and export patient data.
Compress patient data to reduce required storage space.
Transfer patient files easily using operating system functions.
Wide range of system settings, including:
- Selection of Chinese or English language.
- ECG waveform display formats:
  - 12 leads × 1 column
  - 6 leads × 1 column
  - 6 leads × 2 columns
  - 3 leads × 2 columns
  - 3 leads × 1 column
- Background color settings.
- Print settings.
- Filter settings.
- Customize display parameters.

Connectivity and Compatibility

Wireless ECG data acquisition to improve freedom of movement and reduce signal interference.
Compatible with various stress test systems and equipment.

Technical Specifications

Parameter	Specifications
Patient Leakage Current	<10 μA
Input Impedance	≥50 MΩ
Frequency Response	0.05 Hz–150 Hz (-3 dB to +0.4 dB)
Time Constant	≥3.2 s
Common Mode Rejection Ratio (CMRR)	>60 dB / >100 dB (with filter activated)
Calibration Voltage	1 mV
Maximum Sampling Rate	1000 Hz
Sampling Accuracy	Up to 24 bits
Input Loop Current	≤50 nA
Polarization Voltage	±500 mV
Noise Level	≤15 μVp-p
Safety Classification	Internally powered equipment, type BF

Related Accessories

Compatible accessories to extend functionality

Standard Accessories Included

Item	Quantity
Wireless Network Card	1 Piece
Wire Cable	1 Piece
Electrodes	1 Piece
Grounding Wire	1 Piece
Velcro Strap	2 Piece
Serial Port Cable	1 Piece
CD Software	1 Piece
Software Security Dongle	1 Piece
Serial Port Card	1 Piece

Package Contents

The ECG Exercise System Package includes essential accessories for ECG Signal Acquisition, Wireless Communication, System Connection, and Software Operation. These accessories support reliable Cardiac Stress Testing, Data Transmission, and Professional ECG Analysis workflows.

Product Overview

Core specifications at a glance

SKU MDT13-D00002
