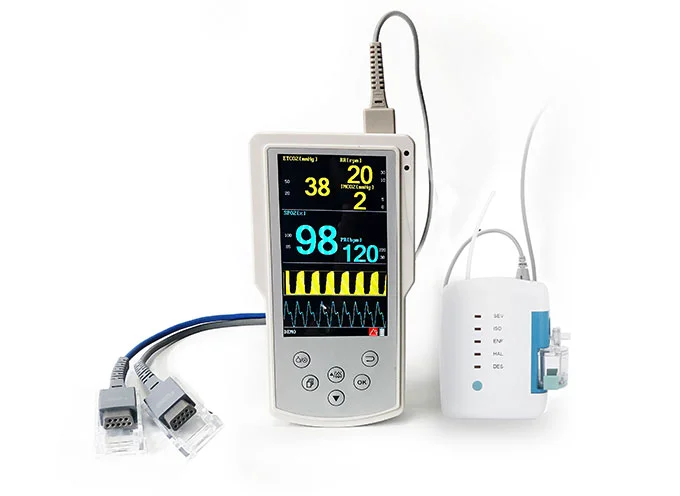

    Capnoxi® Plus AG

    Patient Monitor SpO₂ and EtCO₂ with Advanced Capnography, Respiratory Analysis, and Optional Anesthetic Gas Monitoring

    The SpO₂ and ETCO₂ patient monitor is a professional respiratory monitoring solution designed for intensive care units, operating rooms, emergency departments, anesthesia, and transport applications. Using NDIR single-beam infrared technology, it provides accurate real-time measurement of EtCO₂, respiratory waveform display, respiratory rate monitoring, and optional SpO₂ analysis for comprehensive assessment of oxygenation and ventilation.
    Email this page
    CE CE Mark
    ABS Made of ABS
    LATEX Natural Latex Free

    Product Features

    Discover the advanced capabilities that set our products apart

    CO₂ and Respiration Monitor with Anesthetic Gas Analysis

    Advanced CO₂ Monitoring

    • Single-beam infrared NDIR technology for fast and reliable EtCO₂ measurement.
    • Real-time display of CO₂ concentration and respiratory waveform.
    • CO₂ measurement range: 0–99 mmHg (0–13%).
    • Waveform appears within 20 seconds of startup.

    Respiration Monitoring

    • Respiration rate measurement range: 2–150 breaths/min.
    • Adjustable apnea alarm from 20–60 seconds.
    • Continuous monitoring of ventilation status.

    Anesthetic Gas Analysis – Optional

    Supports monitoring of a range of anesthetic gases, including:

    • N₂O
    • ISO
    • ENF
    • SEV
    • DES
    • HAL
    • MAC calculation to assess anesthesia depth.

    Display and User Interface

    • 5.0-inch high-resolution TFT screen.
    • Clear display of:
      • CO₂ waveform
      • Measurement values
      • Alarm status
      • Patient data

    Alarm and Safety System

    • Visual and audible alarm system:
      • Yellow/red LED indicators for alarms.
      • Clear audible alerts.

    Portable Design and Power Source

    • Compact and lightweight design weighing approximately 0.65 kg.
    • Built-in rechargeable lithium battery.
    • Continuous operation up to 10 hours.
    • Suitable for bedside and patient transport monitoring.

    Connectivity and Data Management

    • Mini USB port for data transfer.
    • 12V DC power input.
    • Supports data review and management via computer.
    • Stores up to 255 hours of trend data.
    • Professional software for SpO₂ and respiratory status analysis.
    • Display of trend charts and summary tables for reporting.

    SpO₂ Monitoring – Optional

    Supports a variety of SpO₂ sensors suitable for:

    • Adults
    • Pediatrics
    • Neonates
    • Multi-site sensors

    Product Specifications

    Detailed technical specifications and performance parameters

    Category Specifications
    Required Environment
    Operating Temperature 5°C ~ 50°C
    Operating Humidity 0 ~ 95% RH
    Operating Atmospheric Pressure 70.0 ~ 106.0 kPa
    Storage Temperature 0°C ~ 70°C
    Storage Humidity 0 ~ 95% RH
    Storage Atmospheric Pressure 22.0 ~ 120 kPa
    Power Specifications
    Input Voltage 12V DC
    Input Current 2.0 A
    Physical Specifications
    Weight 0.65 kg
    Dimensions 192 × 106 × 44 mm
    Display
    Type TFT LCD Color
    Size 5.0 inch
    Battery
    Type Rechargeable Lithium Battery
    Quantity 4
    Voltage 3.7 V
    Capacity 2200 mAh
    Operating Time Up to 10 hours
    Recharge Time 4 hours
    Alarm & Indicator
    Patient Alarm Indicator Two Colors: Yellow / Red
    Audio Indicator Loudspeaker with Alarm Audio Replay

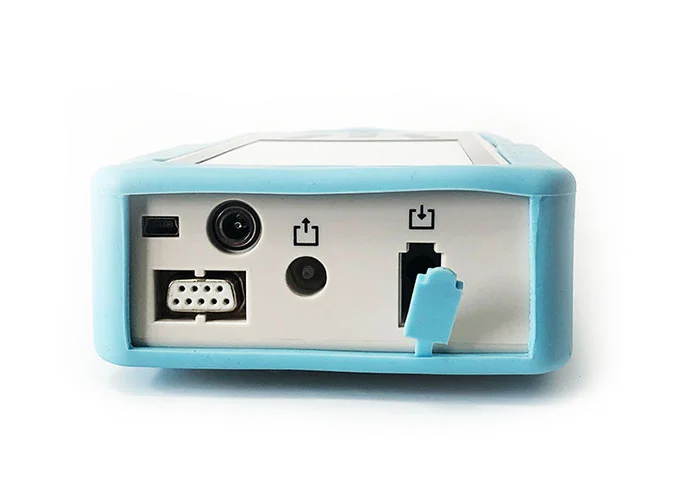

    Interfaces
    Power Interface 12V DC Socket ×1
    USB Interface Mini USB Socket ×1
    CO₂ Measurement
    Principle NDIR Single Beam Optical Technology
    Sampling Rate 90 ml/min ±10 ml/min
    Warm-up Time Waveform Display within 20 seconds
    CO₂ Range 0 ~ 99 mmHg / 0 ~ 13%
    Respiration Rate Range 2 ~ 150 bpm
    CO₂ Accuracy 0 ~ 40 mmHg: ±2 mmHg 40 ~ 99 mmHg: ±5% of reading
    RR Accuracy ±1 bpm
    Apnea Alarm Time 20 ~ 60 seconds
    Anesthetic Gas Measurement (Optional)
    N₂O Range 0 ~ 100 VOL%
    N₂O Accuracy ±(2.0 VOL% + 5% of reading)
    ISO Range 0 ~ 6 VOL%
    ISO Accuracy ±(0.3 VOL% + 2% of reading)
    ENF Range 0 ~ 6 VOL%
    ENF Accuracy ±(0.3 VOL% + 2% of reading)
    SEV Range 0 ~ 8 VOL%
    SEV Accuracy ±(0.3 VOL% + 2% of reading)
    DES Range 0 ~ 18 VOL%
    DES Accuracy ±(0.3 VOL% + 2% of reading)
    HAL Range 0 ~ 6 VOL%
    HAL Accuracy ±(0.3 VOL% + 2% of reading)

    MAC Reference Value

    Anaesthetic Agent MAC 1.0 Value
    Enflurane 1.68
    Isoflurane 1.16
    Sevoflurane 1.71
    Halothane 0.75
    N₂O 100%
    Desflurane MAC 1.0 varies by age:
    Age Group MAC 1.0
    18–30 years 7.25%
    31–65 years 6.0%
    Clinical MAC Reference:
    • 1.0 MAC: Concentration at which 50% of subjects do not respond to stimulation.
    • 1.3 MAC: Approximately 95% of subjects show no response.
    • 0.4 MAC: Most patients begin to awaken.

    Related Accessories

    Compatible accessories to extend functionality

    Item Quantity
    CO₂ Sample Line 1 piece
    Nasal Cannula 1 piece
    Water Trap Column 1 piece
    Airway Adapter 1 piece
    Power Adapter 1 piece

    Optional Accessories

    Item
    SpO₂ cable (adult rigid shell sensor)
    SpO₂ cable (adult soft shell sensor)
    SpO₂ cable (neonatal soft sensor)
    SpO₂ cable (pediatric rigid shell sensor)
    SpO₂ cable (pediatric soft shell sensor)
    SpO₂ cable (pediatric finger clip)
    SpO₂ cable (multi-site Y-type)
    External SpO₂ cable

    Product Overview

    Core specifications at a glance

    SKU MDT19-D00005
    Gross Weight 1.8kg
    Package Size 33×24×9cm
    QTY/BOX 1pcs
