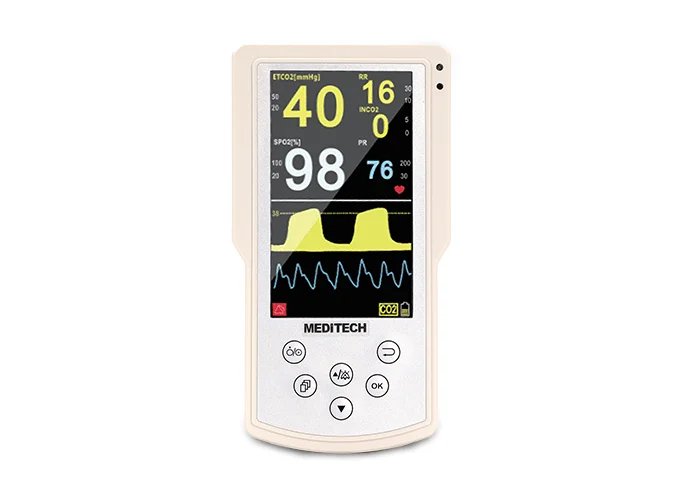

Capnoxi® plus

Portable SpO₂ and EtCO₂ Monitor with Respiratory Analysis Software and Advanced Trend Data Management

Portable SpO₂ and ETCO₂ Monitor is an advanced handheld monitoring solution designed for continuous assessment of oxygen saturation (SpO₂), pulse rate, end-tidal carbon dioxide (ETCO₂), and respiratory rate. With robust data storage, USB connectivity, and professional analysis software, it supports comprehensive respiratory monitoring in emergency, intensive care, and clinical settings.

Email this page

CE Mark

Made of ABS

Natural Latex Free

All Meditech customers and healthcare professionals can submit equipment service tickets through the Customer Service Portal.

To receive two additional months of extended warranty, please register your product here.

To browse all support resources and contact information, please visit the Support Center.

Coming soon.

Product Features

Discover the advanced capabilities that set our products apart

Multi-parameter respiratory monitoring
- Oxygen saturation SpO₂
- Pulse rate PR
- End-tidal carbon dioxide EtCO₂
- Respiratory rate RR
Extended trend data storage
- Store up to 255 hours of trend data.
- Transfer data to the computer via USB for review and analysis.
Professional respiratory analysis software
- Specialized software for analyzing SpO₂ and respiratory status.
- Comprehensive analysis of oxygenation and ventilation data.
Advanced patient data management
- Support for storing an unlimited number of patient data.
- Display of EtCO₂ and SpO₂ trends in table form.
- Ease of reviewing and managing patient data.
Computer connectivity and reporting
- USB connection for transferring data between the device and the computer.
- Ability to print trend charts and data summaries via the computer or printer.
Flexible monitoring modes
- SpO₂ only mode for basic monitoring.
- SpO₂ + CO₂ mode for advanced respiratory monitoring.

Product Specifications

Detailed technical specifications and performance parameters

Multi-Parameter Capnography Monitor	Specifications
Display
Screen Type	TFT Color Screen
Screen Size	5.0 inch
Alarm Display	Two Colors: Yellow / Red
Audio Indicator	Alarm Audio Replay via Loudspeaker
Interfaces
Power Socket	12V DC × 1
USB Interface	Mini USB × 1
CO₂ Monitoring
Measurement Principle	NDIR Single Beam Optics, Two Wavelengths, No Moving Parts
Sampling Rate	50 ml/min ±10 ml/min
Warm-up Time	≤5 seconds with CO₂ Waveform Display
CO₂ Measurement Range	0–99 mmHg / 0–13%
Respiration Rate Range	2–150 bpm
CO₂ Accuracy	0.1 mmHg (0–40 mmHg) / 0.25 mmHg (40–99 mmHg)
Respiration Rate Accuracy	1 bpm
CO₂ Accuracy	±2 mmHg (0–40 mmHg) / ±5% of reading (40–99 mmHg)
Respiration Rate Accuracy	±1 bpm
Apnea Alarm Time	10–60 seconds
SpO₂ Monitoring
SpO₂ Range	0–100%
Pulse Rate Range	35–254 bpm
SpO₂ Accuracy	±2% (70–100%)
Pulse Rate Accuracy	±2 bpm or ±2%
Battery
Quantity	4 pcs
Type	Rechargeable Lithium Battery
Voltage	3.7V
Capacity	2200mAh
Operating Time	Approx. 10 hours
Recharge Time	Approx. 4 hours

Related Accessories

Compatible accessories to extend functionality

Standard Accessories	Quantity
CO₂ Sample Line	1 pc
Nasal Cannula	1 pc
Power Adapter	1 pc
Water Trap Column	1 pc
Airway Adapter	1 pc

Optional Accessories
SpO₂ cable (adult rigid cortical sensor)
SpO₂ cable (adult soft cortical sensor)
SpO₂ cable (neonatal soft sensor)
SpO₂ cable (pediatric rigid cortical sensor)
SpO₂ cable (pediatric soft cortical sensor)
SpO₂ cable (pediatric finger clip)
SpO₂ cable (multi-site Y-type)
External SpO₂ cable
