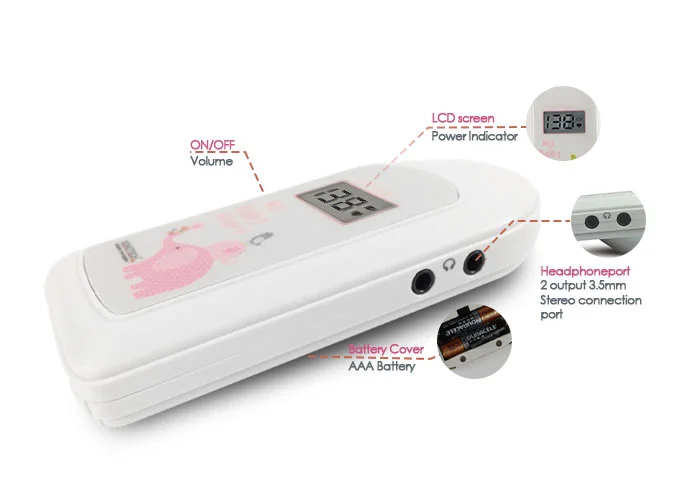

Portable mini fetal heart rate monitor with clear sound and lightweight design.
The Mini Fetal Heart Rate Monitor is a compact and easy-to-use device designed to detect the fetal heartbeat quickly and reliably. With a clear pulse rate display, a low-noise audio output, an automatic display freeze function, and a lightweight, portable design, it is ideal for comfortable prenatal monitoring in clinics, hospitals, and home care settings.
All Meditech customers and healthcare professionals can submit equipment service tickets through the Customer Service Portal.
To receive two additional months of extended warranty, please register your product here.To browse all support resources and contact information, please visit the Support Center.
Coming soon.
Discover the advanced capabilities that set our products apart
Detailed technical specifications and performance parameters
| Parameter | Specifications |
|---|---|
| Display | 25 mm × 14 mm LCD Display |
| FHR Performance | |
| FHR Measurement Range | 50–240 bpm (beats per minute) |
| Resolution | 1 bpm |
| Accuracy | ±2 bpm |
| Power Consumption | <0.8 W |
| Auto Shut-off | Automatically turns off after 1 minute without signal |
| Battery Type | 2 × 1.5V DC Batteries (AA LR6) |
| Ultrasound Sensor | |
| Nominal Frequency | 2.0 MHz |
| Operating Frequency | 2.0 MHz ±10% |
| Negative Peak Acoustic Pressure (P-) | <0.5 MPa |
| Output Beam Intensity (Iob) | <10 mW/cm² |
| Spatial Peak Temporal Average Intensity (Ispta) | <50 mW/cm² |
| Spatial Average Temporal Average Intensity (Isata) | <5 mW/cm² |
| Ultrasound Output Power | <10 mW |
| Operating Mode | Continuous Wave Doppler |
| Effective Radiating Area of the Transducer | 157 mm² ±15% |
| Environmental Conditions | |
| Operating Temperature | +5°C ~ +40°C |
| Operating Humidity | ≤80% RH |
| Operating Atmospheric Pressure | 70 kPa ~ 106 kPa |
| Transport & Storage Conditions | |
| Storage Temperature | -10°C ~ +55°C |
| Storage Humidity | ≤93% RH |
| Storage Atmospheric Pressure | 50 kPa ~ 106 kPa |
Compatible accessories to extend functionality
| Item | Quantity |
|---|---|
| Stereo Audio Cable | 1 piece |
| AAA Battery | 2 pieces |
| Headset | 1 piece |
| Cleaning Cloth | 1 piece |
| Item |
|---|
| External Mini Speaker |
| Carrying Case |
| Smart Audio Device Cable (Android / iOS) |
| Rechargeable Battery |
| Charger (Panasonic) |
