    MD901F

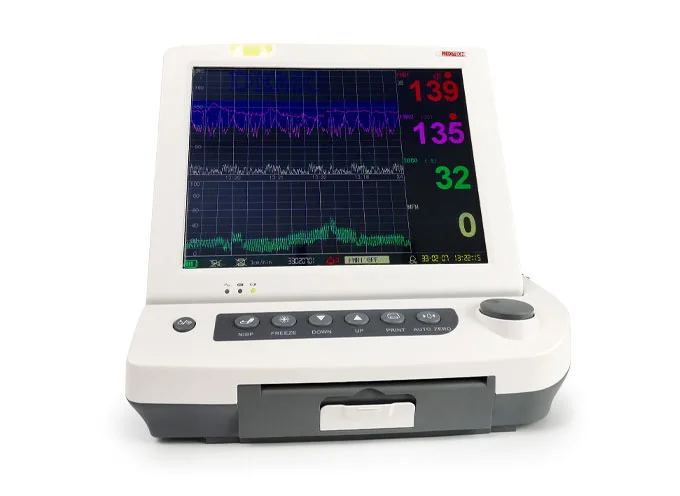

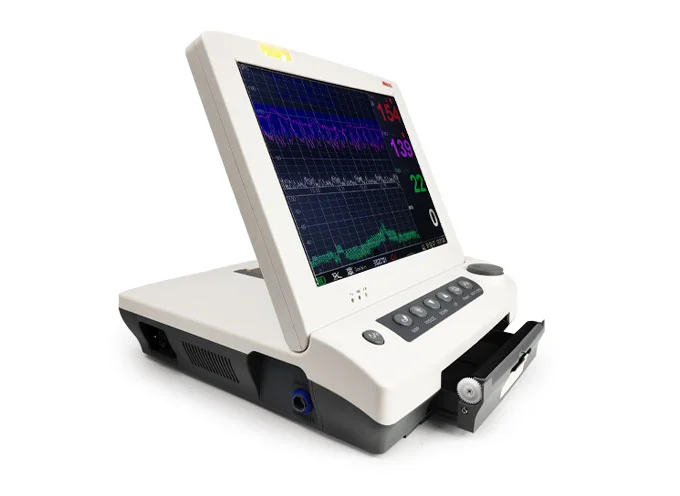

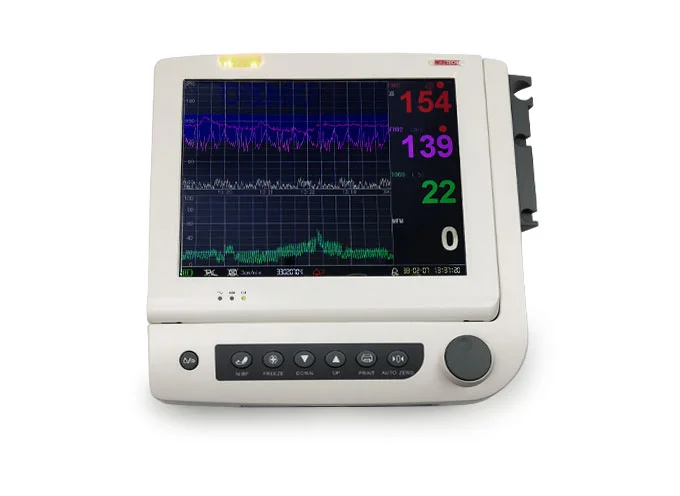

    12-inch rotatable color screen fetal monitor with fetal heart rate monitoring, TOCO, and screen adjustable up to 75°

    The 12-inch color fetal monitor is a professional obstetric monitoring system designed to provide accurate and reliable assessment of fetal heart rate (FHR), uterine activity (TOCO), and maternal vital signs during pregnancy and childbirth. Equipped with advanced digital signal processing (DSP) technology, high-sensitivity Doppler probes, and a large high-resolution color display, it provides clear real-time monitoring and improved clinical confidence.

    Equipped with FHR and TOCO waveform display, built-in thermal recording, data storage, and operating functions, the system supports efficient workflow in delivery rooms, maternity units, and obstetric clinics. With an intelligent alarm system, easy operation, and optional maternal monitoring modules—including ECG, SpO₂, NIBP, RESP, PR, and TEMP—it offers a comprehensive solution for fetal and maternal care together.

    Using a pulsed Doppler probe with a frequency of 1.0 MHz, advanced signal accuracy, and flexible wired/wireless probe options, the device ensures safe, comfortable, and continuous monitoring throughout the entire care process.

    Email this page
    CE CE Mark
    ABS Made of ABS
    LATEX Natural Latex Free

    Product Features

    Discover the advanced capabilities that set our products apart

    • 12-inch high-definition color screen
      • Clear color TFT screen for displaying fetal and maternal monitoring data.
      • Adjustable rotation angle up to 75° for easy viewing.
    • Real-time FHR and TOCO monitoring
      • Fetal heart rate (FHR) monitoring.
      • Uterine activity (TOCO) monitoring with real-time waveform display.
    • Advanced signal processing with DSP technology
      • Advanced digital signal processing for stable and reliable performance.
    • High-sensitivity Doppler sensor
      • Multi-crystal Doppler sensor with wide range to improve fetal heartbeat detection.
      • 1.0 MHz Pulsed-Wave Doppler technology to provide low-power ultrasound monitoring.
    • Fetal heart rate monitoring support
      • FHR1 support.
      • Option to add FHR2 for monitoring twins.
    • Built-in thermal recorder
      • Print FHR and TOCO curves directly to obtain monitoring records.
    • Data storage and playback
      • Save previous monitoring sessions and replay them for review and analysis.
    • Integrated alarm system
      • Fetal tachycardia alarm.
      • Fetal bradycardia alarm.
      • Monitoring duration alarm.
      • Out-of-paper alarm.
    • Easy and practical operation
      • Encoder control.
      • Keyboard for entering and managing patient data.
    • 3-in-1 sensor design
      • Reduces cable tangling and helps improve clinical workflow.
    • Wired and wireless sensor support
      • Provides greater flexibility of use in delivery rooms and obstetrics departments.
    • Patient event marker
      • Ability to record important events during the monitoring session.

    Maternal monitoring functions – "Plus Type" version optional

    • Maternal electrocardiography MECG
    • Oxygen saturation SpO₂
    • Non-invasive blood pressure NIBP
    • Pulse rate PR
    • Respiration rate RESP
    • Temperature TEMP

    Applications

    Suitable for fetal and maternal monitoring in labor and delivery rooms, maternity departments, and obstetrics clinics.

    Product Specifications

    Detailed technical specifications and performance parameters

    Parameter Specifications
    Display
    Display Size 12.1-inch foldable display (75° angle)
    Display Information Bed No., Gestational Weeks, Age, Paper Speed, Date, Time, Volume, Alarm Status, Sensor Connection Status, Recorder Status, FHR Data & Waveform, Contraction Data & Waveform, Fetal Movement Marks
    Ultrasound Probe
    Nominal Frequency 1.0 MHz
    Operating Frequency 1.0 MHz ±10%
    Negative Peak Acoustic Pressure p < 1 MPa
    Output Beam Intensity Iob < 20 mW/cm²
    Spatial Peak Temporal Average Intensity Ispta < 100 mW/cm²
    Spatial Average Temporal Average Intensity Isata < 10 mW/cm²
    Fetal Heart Rate (FHR)
    FHR Measurement Range

    Related Accessories

    Compatible accessories to extend functionality

    Standard Accessories

    Item Quantity
    Ultrasound probe 1 piece
    TOCO probe 1 piece
    Remote control key 1 piece
    Abdominal belt 1 piece
    Z-Fold thermal paper 1 piece
    Grounding cable 1 piece
    Fuse 2 pieces
    Cleaning cloth 1 piece

    Optional Accessories

    Item
    ECG cable (3 leads)
    Alligator-type metal ECG clips
    SpO₂ cable for adults
    SpO₂ cable for neonates
    SpO₂ cable with finger clip for adults
    SpO₂ cable with finger clip for children
    Y-type multi-site SpO₂ cable
    SpO₂ probe with soft tip
    External SpO₂ cable
    NIBP cuff for infants (8–14 cm, 5 pieces/bag)
    NIBP cuff for children (13–20 cm, 5 pieces/bag)
    NIBP cuff for small adults (18–26 cm, 5 pieces/bag)
    NIBP cuff for adults (26–35 cm, 5 pieces/bag)
    NIBP cuff for long adults (29–38 cm, 5 pieces/bag)
    NIBP cuff for large adults (32–42 cm, 5 pieces/bag)
    NIBP cuff for large and long adults (35–44 cm, 5 pieces/bag)
    NIBP cuff for thigh (42–50 cm)
    NIBP tube 150 cm long
    Thermal paper roll
    Thermal printer
    Wall mount for patient monitor (3 models)
    Cart for patient monitor (5 models)

    Product Overview

    Core specifications at a glance

    SKU MDT07-D00001
    Gross Weight 6.5kg
    Package Size 42×40×26cm
    QTY/BOX 1pcs
