    MD908D

    Standard patient monitor with 12.1-inch touchscreen with ECG, SpO₂, NIBP, and EtCO₂ expansion.

    8-Inch Patient Monitor

    The 8-inch patient monitor is a compact and reliable bedside monitoring system, designed for use in hospitals, clinics, wards, and bedside monitoring applications. It provides comprehensive monitoring of essential vital signs through a clear touchscreen and an easy-to-use, intuitive user interface.

    Key Features

    • 8-inch touchscreen Provides a clear display of data and waveforms with an easy-to-use interface and intuitive operation.
    • Multi-parameter monitoring Supports monitoring of a range of essential vital signs, including:
      • Electrocardiogram ECG
      • Oxygen saturation SpO₂
      • Non-invasive blood pressure NIBP
      • Respiration rate RESP
      • Dual temperature TEMP
      • Pulse rate PR
    • Multiple clinical uses Suitable for continuous patient monitoring in wards, outpatient departments, emergency departments, and various clinical environments.
    • Compact and space-saving design Combines essential multi-parameter monitoring functions in a practical and compact design, making it suitable for use at the patient's bedside.
    Email this page
    CE CE Mark
    ABS Made of ABS
    LATEX Natural Latex Free

    Product Features

    Discover the advanced capabilities that set our products apart

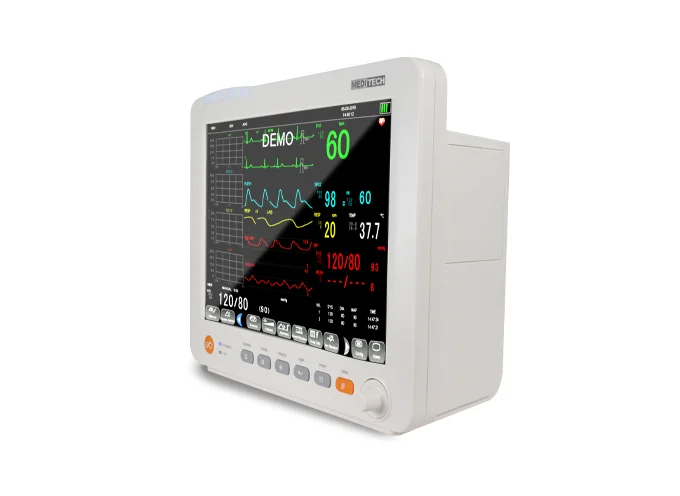

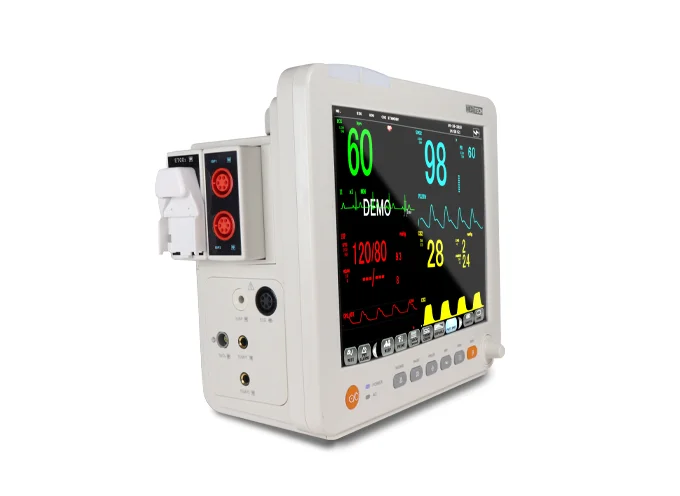

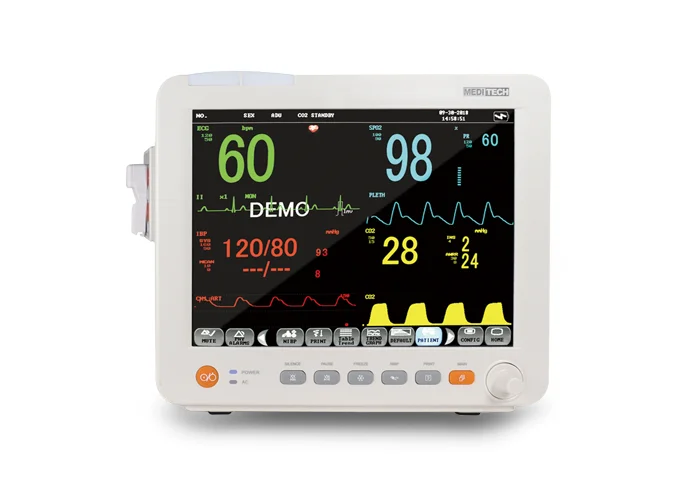

    12.1-inch Modular Multi-Parameter Patient MonitorOverview:A high-definition12.1-inch TFT Touch Screenmodular patient monitor, designed for versatile clinical use, suitable foradult, pediatric, and neonatal patients.Standard Monitoring Parameters:
    • ECG
    • Respiration (RESP)
    • Pulse Rate (PR)
    • Non-Invasive Blood Pressure (NIBP)
    • SpO₂
    • Temperature (TEMP)
    Optional Monitoring Parameters:
    • 2 Invasive Blood Pressures (IBP)
    • End-Tidal CO₂ (ETCO₂)
    Features:
    • Maximum8-channel simultaneous waveform display.
    • Built-in rechargeable lithium battery for up to2 hoursof continuous operation.
    • Three working modes:Monitoring, Operation, and Diagnosis.
    • Data and waveform colors adjustable for clarity.
    • Arrhythmia analysisandST segment analysisincluded.
    • Display up to7 ECG waveformson a single screen with continuous ECG display.
    • VGA outputfor external display.
    • System software upgradable viaUSB.


    Product Specifications

    Detailed technical specifications and performance parameters

    ECG Monitoring

    Parameter Specifications
    Lead Configuration 5 Leads (R, L, F, N, C / RA, LA, LL, RL, V)
    Lead Selection I, II, III, aVR, aVL, aVF, V
    Waveform Display 2 Channels
    Lead Configuration 3 Leads (R, L, F / RA, LA, LL)
    Lead Selection I, II, III
    Gain ×2.5, ×5, ×10, ×20 mm/mV, Auto
    Heart Rate Range Adult: 15–300 bpm / Pediatric-Neonatal: 15–350 bpm
    Heart Rate Accuracy ±1% or ±1 bpm
    Resolution 1 bpm
    Sensitivity >200 μV
    Differential Input Impedance >5 MΩ
    CMRR Monitoring: >105 dB / Operating: >105 dB / Diagnostics: >85 dB
    Electrode Offset Voltage ±300 mV
    Leakage Current <10 μA
    Baseline Recovery <3 s after defibrillation
    ECG Signal Range ±8 mV (Vp-p)
    Bandwidth Surgery: 1–15 Hz / Monitoring: 0.5–35 Hz / Diagnostic: 0.05–100 Hz
    Signal Calibration 1 mV ±5%
    ST Monitoring Range -2.0 to +2.0 mV
    Arrhythmia Detection Asystole, VFib/VTAC, Couplet, Bigeminy, Trigeminy, R on T, VT >2, PVC, TACHY, BRADY, Missed Beats, PNP, PNC

    RESP (Respiration Monitoring)

    Parameter Specifications
    Measurement Method Impedance between RF (RA-LL)
    Differential Input Impedance >2.5 MΩ
    Measurement Impedance Range 0.3–5.0 Ω
    Baseline Impedance Range 0–2.5 kΩ
    Bandwidth 0.3–2.5 Hz
    Respiration Rate Range Adult: 0–120 RPM / Pediatric-Neonatal: 0–150 RPM
    Resolution 1 RPM
    Accuracy ±2 RPM
    Apnea Alarm 10–40 s

    NIBP Monitoring

    Parameter Specifications
    Measurement Method Oscillometric
    Modes Manual / Automatic / STAT
    Automatic Measurement Interval 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240, 480 minutes
    STAT Mode Duration 5 minutes
    Pulse Rate Range 40–240 bpm
    Alarm Type SYS, DIA, Mean

    Measurement Range

    Patient Type SYS DIA Mean
    Adult 40–270 mmHg 10–215 mmHg 20–235 mmHg
    Pediatric 40–200 mmHg 10–150 mmHg 20–165 mmHg
    Neonatal 40–135 mmHg 10–100 mmHg 20–110 mmHg
    Parameter Specifications
    Accuracy 1 mmHg
    Accuracy Maximum average deviation ±5 mmHg; standard deviation ±8 mmHg
    Overpressure protection Adult: 297±3 mmHg / Pediatric: 240±3 mmHg / Neonatal: 147±3 mmHg

    SpO₂ Monitoring

    Parameter Specifications
    Measurement range 0–100%
    Alarm range 0–100%
    Accuracy 1%
    Accuracy 70–100%: ±2% / 0–69%: unspecified
    Update interval Approximately 1 second
    Alarm delay 10 s
    Pulse rate range 0–254 bpm
    Pulse rate accuracy 1 bpm
    Pulse rate accuracy ±2 bpm

    Temperature Monitoring

    Parameter Specifications
    Channels Single channel
    Measurement & Alarm Range 0–50°C
    Accuracy 0.1°C
    Accuracy ±0.1°C
    Update interval Approximately 1 second
    Average time constant <10 s

    IBP (Invasive Blood Pressure) Module

    Parameter Specifications
    Supported channels ART, PA, CVP, RAP, LAP, ICP, P1, P2

    Measurement range

    Channel Range
    ART 0–300 mmHg
    PA -6–120 mmHg
    CVP / RAP / LAP / ICP -10–40 mmHg
    P1 / P2 -10–300 mmHg
    Parameter Specifications
    Pressure Sensor Sensitivity 5 μV/V/mmHg
    Impedance 300–3000 Ω
    Accuracy 1 mmHg
    Accuracy ±2% or ±1 mmHg

    Related Accessories

    Compatible accessories to extend functionality

    Item Quantity
    ECG cable (5 leads) 1 piece
    SpO₂ cable (adult) 1 piece
    TEMP probe (adult) 1 piece
    NIBP cuff (adult) 1 piece
    NIBP tube (150 cm) 1 piece
    Grounding cable 1 piece
    Power cable 1 piece
    Cleaning cloth 1 piece

    Optional Accessories

    ECG Accessories

    • ECG Cable (3 Leads)
    • ECG Alligator Clips (Metal)

    SpO₂ Accessories

    • SpO₂ Cable (Adult Hard Shell Sensor)
    • SpO₂ Cable (Adult Soft Shell Sensor)
    • SpO₂ Cable (Neonatal Soft Sensor)
    • SpO₂ Cable (Pediatric Hard Shell Sensor)
    • SpO₂ Cable (Pediatric Soft Shell Sensor)
    • SpO₂ Cable (Pediatric Finger Clip)
    • SpO₂ Cable (Y-Type Multi-Site)
    • External SpO₂ Cable

    NIBP Accessories

    • NIBP Cuff (Infant 8–14 cm, 5/bag)
    • NIBP Cuff (Pediatric 13–20 cm, 5/bag)
    • NIBP Cuff (Small Adult 18–26 cm, 5/bag)
    • NIBP Cuff (Adult 26–35 cm, 5/bag)
    • NIBP Cuff (Tall Adult 29–38 cm, 5/bag)
    • NIBP Cuff (Large Adult 32–42 cm, 5/bag)
    • NIBP Cuff (Tall Large Adult 35–44 cm, 5/bag)
    • NIBP Cuff (Thigh 42–50 cm)
    • NIBP Tube (150 cm)

    Printing & Mounting Accessories

    • Thermal Paper Roll
    • Thermal Printer
    • Patient Monitor Wall Mounts (3 Models)
    • Patient Monitor Cart (5 Models)

    EtCO₂ Accessories

    • EtCO₂ Module
    • CO₂ Sampling Line
    • Nasal Cannula
    • Water Trap Column
    • Air duct adapter

    IBP Accessories

    • IBP Adapter (2-IBP)
    • IBP Reusable Interface Cable
    • IBP Single-Use Adapters

    Product Overview

    Core specifications at a glance

    SKU MDT10-D00009
    Gross Weight 4.3kg
    Package Size 38×29×26cm
    QTY/BOX 1pcs
