    SpirOx® p *USB

    Palm-sized spirometer | Portable pulmonary function testing device with PEF and FEV1 measurement.

    Portable compressed respiratory measurement device with built-in LCD screen, PEF and FEV1 measurement, rotating vane technology, 300-record memory, ATS-compliant testing, and reliable performance for clinical, home, and pulmonary function testing applications.
    Email this page
    CE CE Mark
    ABS Made of ABS
    LATEX Natural Latex Free

    Product Features

    Discover the advanced capabilities that set our products apart

    • Compact and portable design: Palm-sized design with a compact LCD screen.
    • PEF and FEV1 measurement: Provides the essential respiratory function measurements.
    • Rotating impeller sensor (Impeller): Enables accurate and reliable air flow measurement.
    • Memory for 300 measurements: Stores up to 300 measurement results.
    • ATS compliant: Designed according to ATS-approved respiratory function testing standards.
    • Wide measurement range: PEF from 50 to 900 L/min and FEV1 from 0.01 to 9.99 L.
    • High measurement accuracy: PEF accuracy up to 1 L/min and FEV1 accuracy up to 0.01 L.
    • For clinical and home use: Suitable for hospitals, clinics, screening programs, and home monitoring.
    • Easy to operate: Simple and easy-to-use design for performing respiratory function assessments.
    • Reliable measurement performance: Provides consistent measurement results to support lung function screening and assessment.

    Product Specifications

    Detailed technical specifications and performance parameters

    Display & Control

    Parameter Specifications
    Display Type Segmented liquid crystal display (LCD)
    Standard Controls Power / Confirm key, Left / Right navigation keys

    Technical Measurement

    Parameter Specifications
    Flow Measurement Method Turbine sensor
    Volume Measurement Method Flow integration algorithm

    Measurement Range

    Parameter Specifications
    Volume Range 0.01L–9.99L
    Air Flow Range 50–900 L/min

    Measurement Accuracy

    Parameter Specifications
    Volume Accuracy ±0.05L or ±3% (whichever is greater)
    Flow Accuracy ±10% or ±20L/min (whichever is greater)

    Power & Data Storage

    Parameter Specifications
    Power Source 2 × AAA 1.5V alkaline batteries
    Memory Capacity 300 measurements with date and time records

    Environmental Conditions

    Parameter Specifications
    Operating Temperature 10°C–40°C
    Operating Humidity ≤75% RH
    Atmospheric Pressure 500–1060 hPa

    Related Accessories

    Compatible accessories to extend functionality

    Standard Accessories Included

    Item Quantity
    Mouthpiece 1 piece
    Cleaning Cloth 1 piece

    Optional Accessories

    Item Quantity

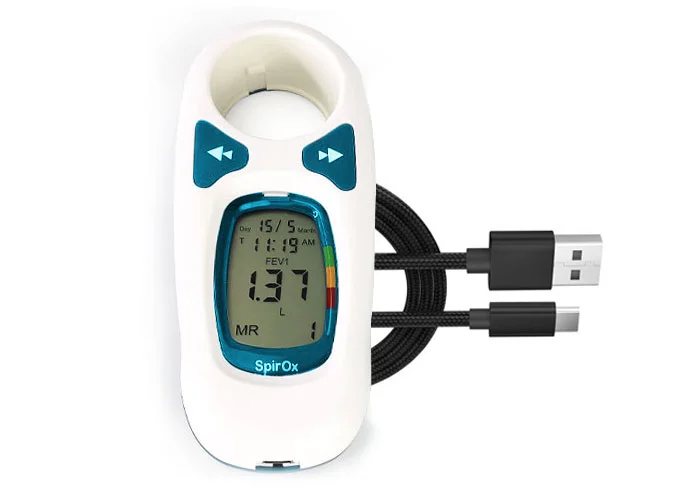

    USB Cable 1 piece

    Product Overview

    Core specifications at a glance

    SKU MDT12-D00004
    Gross Weight 0.2kg
    Package Size 14.2x12.5x4.3 cm
    QTY/BOX 1pcs
